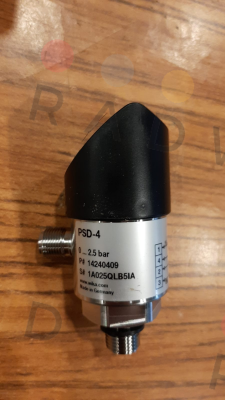

Wika - P/N:14240409 Type: PSD-4
| Manufacturer | Wika |
|---|---|
| Part Number | P/N:14240409 Type: PSD-4 |
| Inner Code | 4492075 |
| Description | switch |
| Technical specification | 0... 2.5 bar; two switching outputs (PNP/NPN) Electronic pressure switch with display Output signal: two switching outputs (PNP/NPN) IO-Link: without auxiliary power: 15... 35 V DC Measuring range: 0... 2.5 bar Process connection: G 1/4 A DIN EN ISO 1179-2 Seal: NBR Medium temperature: -20... 85 °C (-4... +185 °F) Electrical output: Round connector M12x1 (4- pin) electrical output assignment: U+=1, U-=3, SP1=4, SP2=2 Accuracy: ± 0.5% of span Approvals: cULus with test protocol Technical data according to data sheet |
Please contact us to request a price quote for Wika - P/N:14240409 Type: PSD-4, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
