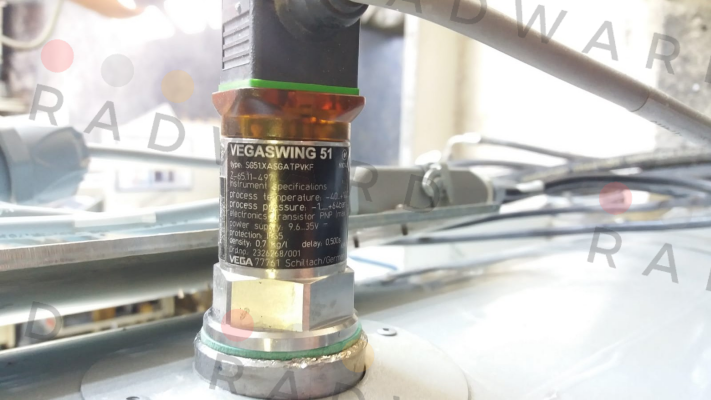

Vega - SG51.XASGATPVKF / VEGASWING 51

Manufacturer Vega
Part Number SG51.XASGATPVKF / VEGASWING 51
Inner Code 3384241
Description Pressure Sensor
Custom Code 90261029
Technical specification (SG51.XASGATPVKF XA approval: overfill protection according to WHG Ship classification society: none Design/process temperature S: standard/-40... +100°C Process connection/Material GA: Thread G1 PN64, DIN3852-A/316L Electronics T: Transistor PNP 9.6... 35 V DC Case P: 316L Electrical connection/protection class V: according to ISO4400 incl. plug/IP65 Switch point K: special version in accordance with drawing MB2443 Operating manual: DE - Deutsch Number of operating instructions: 1 Measuring point identification plate F: made of foil Switching delay in seconds: 0.500 Recommended weld-in socket (not included): ESTSG.1GA**)
Weight 0.306

Please contact us to request a price quote for Vega - SG51.XASGATPVKF / VEGASWING 51, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Vega-SG51.XASGATPVKF / VEGASWING 51 price
