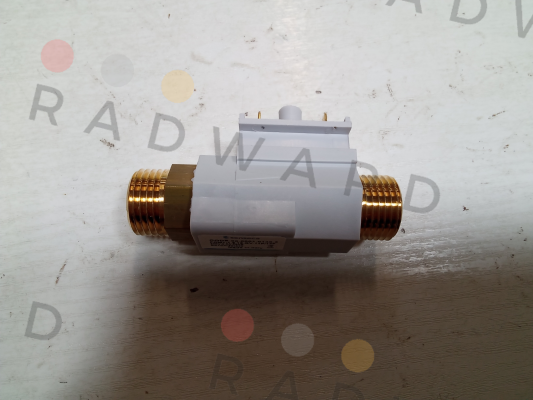

Valco - FCM1-1,5.15.GV.11P/12F
| Manufacturer | Valco |
|---|---|
| Part Number | FCM1-1,5.15.GV.11P/12F |
| Inner Code | 4601548 |
| Description | Fixed Calibration Flow Switch |
| Technical specification | vertical mounting - bottom flow upwards Brass body 1/2" Gas-M process connections Piston sensing element Max working pressure 250 bar Max working temperature 90°C Fixed calibration, see available calibrations as per the technical bulletin Recommended maximum flow 25 l/min H2O Head loss at maximum recommended flow 0.5 bar Replaceable and interchangeable electric head - without removing the flow switch from the pipeline Contact reed NA Maximum electrical loads: 300VAC-DC/70VA/50W/0.5A Electrical output: 6.3 mm Faston Replaceable and interchangeable electric head - without removing the flow switch IP00 degree of protection ns. cod. 00.0001.0146.3 |
Please contact us to request a price quote for Valco - FCM1-1,5.15.GV.11P/12F, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
