United Electric - J120-192-0500-M201-QC1
| Manufacturer | United Electric |
|---|---|
| Part Number | J120-192-0500-M201-QC1 |
| Inner Code | 3401044 |
| Description | Pressure switch |
| Custom Code | 8536 50 80 |

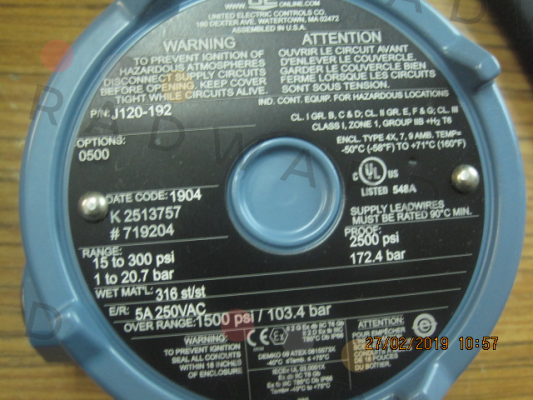

| Technical specification | range: 1,0…20,7 bar set point: 1,4 MPa (rise or fall?); incl. Final Inspection Report QC1 deadband: 0,2…1,7 bar over range pressure: 103,4 bar proof pressure: 172,4 bar media temperature(perm.): -57…204°C materials sensor: diaphragm 316 stainless steel pressure connection: 1/2“ NPT F / 316 stainless steel sealing: welded enclosure: die cast aluminium, epoxy powder coated classification: IP 66 / NEMA 4x electrical data electrical rating: 5 A 125 / 250 Vac hermetically sealed switch output: one SPDT electrical connection: 3/4“ NPT F agency approvals Ex-protection: II 2 G Ex d IIC T6 Gb – II 2 D Ex tb IIIC T85°C Db IP66 approval: DEMKO 09 ATEX 0815573X / IECEx UL 03.0001X Ex-protection: Class I, Division 1 and 2, Groups B, C & D Class II, Division 1 and 2, Groups E, F & G Class III Class I, Zone 1, Group IIB + H2 T6 approval: UL/cUL/CSA – E40857 Ursprungsland: USA |
| Weight | 2 |
Please contact us to request a price quote for United Electric - J120-192-0500-M201-QC1, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
