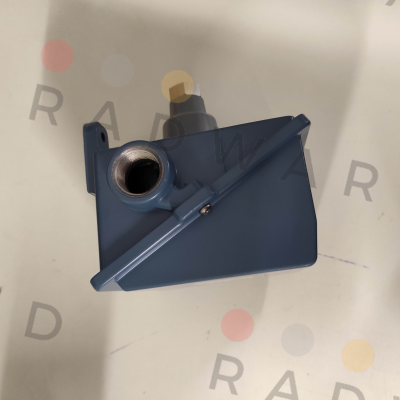

United Electric Controls - J402-376
| Manufacturer | United Electric Controls |
|---|---|
| Part Number | J402-376 |
| Inner Code | 4613665 |
| Description | Pressure Switch |
| Custom Code | 90322000 |
| Technical specification | 400 Series Type J402, dual switch output with internal hex screw adjustment Welded 316L stainless steel bellows and 1/4” NPT (female) pressure connection Adjustable Set Point Range: 0 to 500 psi / 0 to 34,5 bar Deadband: 3 to 12 "wc / 0,2 to 0,8 mbar Over Range Pressure: 500 psi / 34,5 bar Proof Pressure: 575 psi / 39,6 bar Enclosure: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws Classification: Designed to meet enclosure type 4X requirements Switch Output: two SPDT switches Electrical Rating: 15 A 125/250/480 VAC resistive. Electrical switches have limited DC capabilities; at 24-30 VDC, 2A resistive and 1A inductive; at 125 VDC, 0.5A resistive and 0.03A inductive. Electrical Connection: One 3/4” NPT and two 7/8” diameter knockouts |
Please contact us to request a price quote for United Electric Controls - J402-376, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
