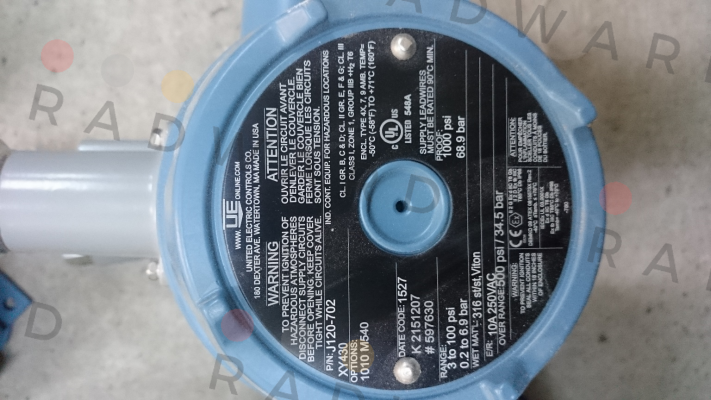

United Electric Controls - J120-702-1010-M540
| Manufacturer | United Electric Controls |
|---|---|
| Part Number | J120-702-1010-M540 |
| Inner Code | 3279753 |
| Description | United Electric Pressure Switch |
| Custom Code | 8536 50 80 |
| Technical specification | range: 0,2….6,9 bar deadband: 68,9…300 mbar over range pressure: 34,5 bar proof pressure: 68,9 bar media temperature(perm.): -23…93°C materials sensor: Viton diaphragm pressure connection: stainless steel 1/4“ NPT F sealing: O-Ring Viton enclosure: die cast aluminum, epoxy powder coated classification: IP 66 / NEMA 4x electrical data electrical rating: 10 A 125 / 250 Vac switch output: one DPDT electrical connection: 3/4“ NPT F agency approvals Ex-protection: II 2 G Ex d IIC T6 Gb – II 2 D Ex tb IIIC T85°C Db IP66 approval: DEMKO 09 ATEX 0815573X / IECEx UL 03.0001X Ex-protection: Class I, Division 1 and 2, Groups B, C & D Class II, Division 1 and 2, Groups E, F & G Class III Class I, Zone 1, Group IIB + H2 T6 approval: UL/cUL/CSA – E40857 Warenverzeichnisnummer: 8536 50 80 Ursprungsland: USA Gewicht: ca. 2…3 Kg / Stück |
| Weight | 2.5 |
Please contact us to request a price quote for United Electric Controls - J120-702-1010-M540 , or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
