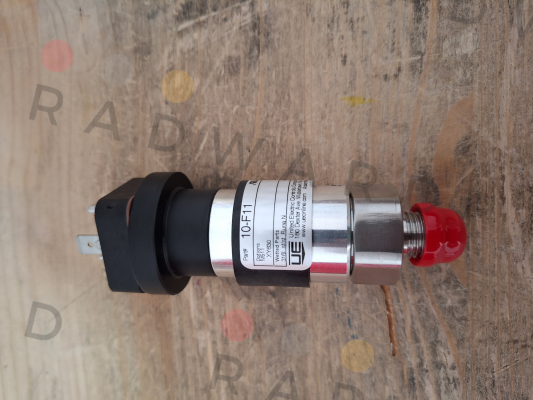

United Electric Controls - 10F-11-M511
| Manufacturer | United Electric Controls |
|---|---|
| Part Number | 10F-11-M511 |
| Inner Code | 3784509 |
| Description | United Electric pressure switch |
| Custom Code | 85365080 |
| Technical specification | 10-Series Safety Pressure Switch P/N:10F-11-M511 Switch point setting: internal Switch point adjustable in the range: 10 psi... 150 psi/0.7 bar... 10.3 bar Switch point hysteresis: 2 psi... 10 psi/0.1 bar... 0.7 bar Maximum working pressure: 1500 psi/103.4 bar Maximum overpressure: 3000 psi/206.8 bar Process connection: see options from Sensor: Buna-N diaphragm and O-ring Notes: N/A Housing: aluminum; protection class NEMA N/A/IP65 Switch: 1 SPDT Switching capacity: Rated to 5 A resistive and 5 A inductive (75% power factor), at 125 VAC & 250 VAC, 1/4 HP; 5 A resistive and 3 A inductive at 30 VDC; 0.5 A resistive and 0.25 A inductive at 125 VDC; gold flashing over silver contact for loads down to 5 mA at 6 VDC, 2 mA at 12 VDC and 1 mA at 24 VDC Electrical connection: 4 terminal DIN connector. Mating part Not supplied options M511:1/4” NPT (M) 316 stainless steel press connection XY630: Distributorcode |
| Weight | 1 |
Please contact us to request a price quote for United Electric Controls - 10F-11-M511, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
