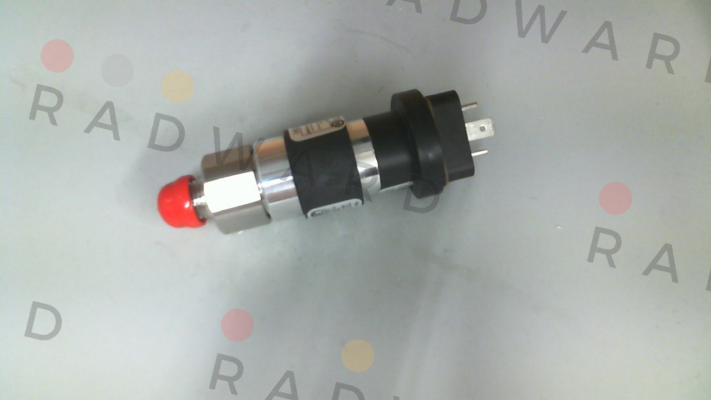

United Electric Controls - 10F-14-M405-M11
| Manufacturer | United Electric Controls |
|---|---|
| Part Number | 10F-14-M405-M11 |
| Inner Code | 4521734 |
| Description | Pressure Switch, 10 Series |
| Custom Code | 90322000 |
| Technical specification | Adjustable Set Point Range: 12,4…206,8 bar Deadband: 3,4 mbar…27,6 bar Proof Pressure: 689,5 bar Over Range Pressure: 551,6 bar Stainless steel piston and Buna-N O-ring Enclosure: Aluminum Enclosure Classification: Termination Type F: IP65. Switch Output: One SPDT Electrical Rating: Rated to 5 A resistive and 5 A inductive (75% power factor), at 125 VAC & 250 VAC, 1/4 HP; 5 A resistive and 3 A inductive at 30 VDC; 0.5 A resistive and 0.25 A inductive at 125 VDC Electrical Connection: IP65 4 terminal DIN connector. Options M405: Intrinsic safety compliance for European Union per ATEX standards M511: 1/4" NPT (male) 316 stainless steel pressure connection Dangerous Goods for Air or Sea Freight: No |
Please contact us to request a price quote for United Electric Controls - 10F-14-M405-M11, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
