Ultra Pompe S.r.l. - PGLG--10VVV----GG--M4-80A
| Manufacturer | Ultra Pompe S.r.l. |
|---|---|
| Part Number | PGLG--10VVV----GG--M4-80A |
| Inner Code | 2521977 |
| Description | gear pump |
| Custom Code | 84136031 |

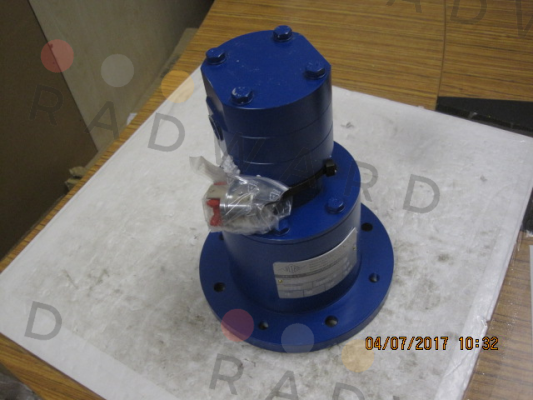

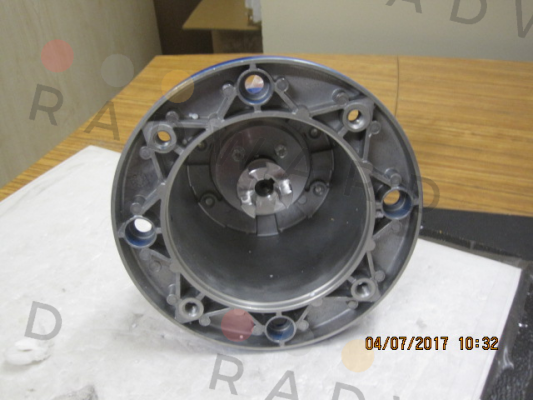

| Technical specification | GL 10 V with lantern and coupling G series gear pump Main body: Cast iron G25 B5 lantern mounting Complete of lantern and coupling (no drive) Displacement 10 cc/rev Mechanical seal: stainless steel/carbon graphite/FPM External lip seal: FPM Gasket: FPM Rotors: Steel 39NiCrMo3 Nitriding process Bearings: steel/PTFE To be coupled to electric motor 0,55 KW 4 Poles B3/B5 230/400/50 Hz Ie2 Class F 80A Rated speed: 1400 rpm Theoric rated delivery (1 bar, 220 cSt): 14 l/min Design pressure: 30 bar Operating pressure and viscosity limited by motor power Operating pressure: 10 bar Operating viscosity: 100 cst Operating temperature: -10...+40°C Pump duty code: 84136031 Spare parts duty code: 84139100 Country of origin: ITALY |
| Weight | 9 |
