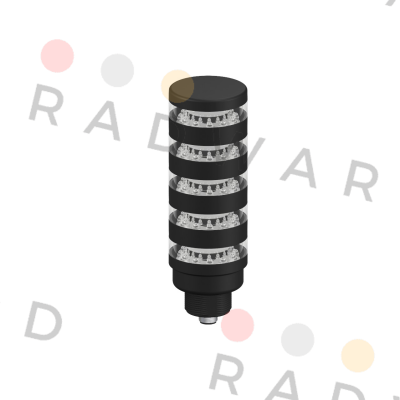

Turck - TL50BLWBGYRCQ
| Manufacturer | Turck |
|---|---|
| Part Number | TL50BLWBGYRCQ |
| Inner Code | 766436 |
| Description | LED Indicator – Tower Light |
| Technical specification | Type TL50BLWBGYRCQ ID 3030403 Signal and display data Purpose LED indicator light Function Tower light Light type White Blue Green Yellow Red Dimmable no Features of color 1 White, Permanently on, 56 lm Features of color 2 Blue, Permanently on, 16 lm Features of color 3 Green, Permanently on, 52 lm Features of color 4 Yellow, Permanently on, 15 lm Features of color 5 Red, Permanently on, 24 lm Electrical data Operating voltage 12…30 VDC DC rated operational current ≤ 125 mA Operating voltage 21…27 VAC AC rated operational current ≤ 100 mA Max. current consumption per color 125 mA Input type Bipolar (PNP/NPN) Response time typical < 1 ms Mechanical data Cascadable No Design Smooth barrel, TL50BL Dimensions Ø 50 x 176.8 x 176.8 mm Housing material Plastic, ABS, Grey Window material Polycarbonate, clear Electrical connection Connector, M12 × 1, PVC Number of cores 8 Ambient temperature -40…+50 °C Relative humidity 0…95 % Protection class IP67 Tests/approvals Approvals CE, UL listed |
| Weight | 1 |
Please contact us to request a price quote for Turck - TL50BLWBGYRCQ, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
