Turck - SLPR14-690
| Manufacturer | Turck |
|---|---|
| Part Number | SLPR14-690 |
| Inner Code | 762589 |
| Description | Receiver |
| Custom Code | 85365019900 |

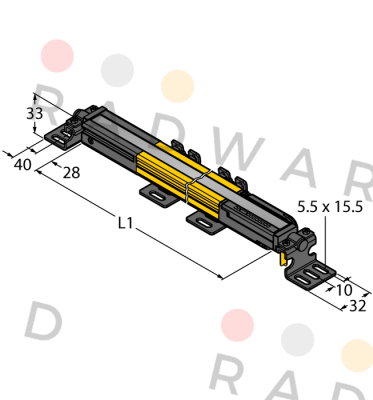

| Technical specification | Personnel Safety, Light Screen Order number: 3083647 Alternative order number : 83647 Electrical connection via RDLP‐8 with open end or via DELPE‐8 with male M12 × 1, 8‐pin Protection class IP65 Flat housing without blind zone Adjustment via DIP switch Resolution can be reduced Blanking function Operating voltage: 24 VDC ± 15 % Resolution 14 mm Scan field 690 mm (L1) Personnel safety Cat 4, PL e acc. to EN ISO 13849‐1:2008 Type 4 according to IEC 61496‐1,‐2 SIL 3 to IEC 61508 Function Light screen Design Rectangular Scan field 690 mm Range 100…7000 mm Optical resolution 14 mm Number of beams 69 Cascadable No With muting function no Start/Restart interlock Adjustable Output function 2 x NC (normally closed), 2 × PNP Electrical connection Cable entry for flat connector Housing material Metal, AL, Yellow polyester Ambient temperature 0…+55 °C Protection class IP65 |
| Weight | 1 |
