Turck - SLPP25-410P88
| Manufacturer | Turck |
|---|---|
| Part Number | SLPP25-410P88 |
| Inner Code | 762600 |
| Description | Personal safety light curtain |
| Custom Code | 85365019900 |

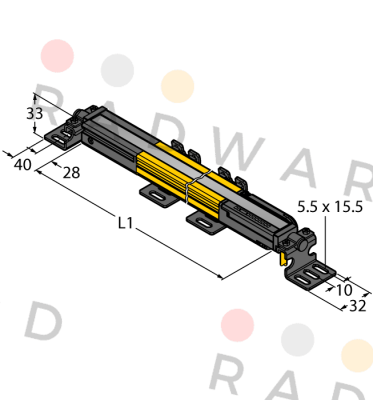

| Technical specification | Transmitter/receiver pair Purchase order number: 3083737 Alternative order number: 83737 Cable with connector, 300 mm, M12x1, 8-pin Protection class IP65 Flat housing without blind zone Adjustment via DIP switch Reduced resolution setting Blanking function Operating voltage: 24 VDC ± 15% resolution 25 mm Monitoring field height 410 mm (L1) Personal protection class Cat 4, PL e according to EN ISO 13849‐1:2008 Type 4 according to IEC 61496‐1, ‐2 SIL 3 in accordance with IEC 61508 Light curtain function Cuboid design Monitoring field height 410 mm Range 100... 7000 mm Optical resolution 25 mm Number of rays 21 Light type IR Cascadable No With muting function No Restart lock - adjustable Output function 2 x opener, 2 x PNP Electrical connection cable with connector, M12 x 1 Cable length 0.30 m Housing material Metal, AL, Yellow polyester Ambient temperature 0... +55 °C Protection class IP65 |
| Weight | 1 |
Please contact us to request a price quote for Turck - SLPP25-410P88, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
