Turck - SLPP14-270
| Manufacturer | Turck |
|---|---|
| Part Number | SLPP14-270 |
| Inner Code | 762596 |
| Description | Personal safety light curtain |
| Custom Code | 85365019900 |

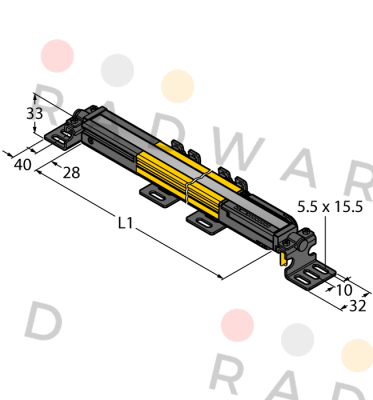

| Technical specification | Emitter/Receiver Pair Order number: 3083770 Alternative order number : 83770 Electrical connection via RDLP‐8 with open end or via DELPE‐8 with male M12 × 1, 8‐pin Protection class IP65 Flat housing without blind zone Adjustment via DIP switch Resolution can be reduced Blanking function Operating voltage: 24 VDC ± 15 % Resolution 14 mm Scan field 270 mm (L1) Personnel safety Cat 4, PL e acc. to EN ISO 13849‐1:2008 Type 4 according to IEC 61496‐1,‐2 SIL 3 to IEC 61508 Function Light screen Design Rectangular Scan field 270 mm Range 100…7000 mm Optical resolution 14 mm Number of beams 27 Light type IR Cascadable No With muting function no Start/Restart interlock Adjustable Output function 2 x NC (normally closed), 2 × PNP Electrical connection Cable entry for flat connector Housing material Metal, AL, Yellow polyester Ambient temperature 0…+55 °C Protection class IP65 |
| Weight | 1 |
Please contact us to request a price quote for Turck - SLPP14-270, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
