Turck - SLPCE25-1250
| Manufacturer | Turck |
|---|---|
| Part Number | SLPCE25-1250 |
| Inner Code | 762621 |
| Description | Personal safety light curtain |
| Custom Code | 85414900000 |

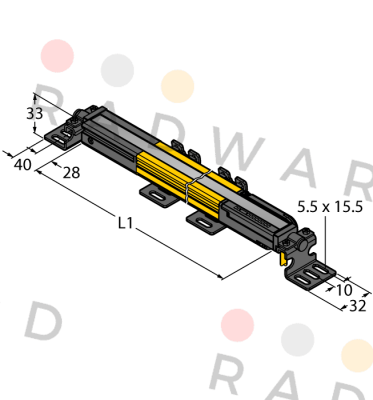

| Technical specification | transmitters cascadable Purchase order number: 3083708 Alternative order number: 83708 Electrical connection via plug type RDLP-8 with open end or DELPE‐8 with M12x1 plug, 8-pin Connection to cascaded participants via DELP‐1... Protection class IP65 Flat housing without blind zone Setting the scan code via DIP switch Operating voltage: 24 VDC ± 15% resolution 25 mm Monitoring field height: 1250 mm (L1) Personal protection class: Cat 4, PL e according to EN ISO 13849‐1:2008 Type 4 according to IEC 61496‐1, ‐2 SIL 3 in accordance with IEC 61508 Function: light curtain Design: cuboid Monitoring field height: 1250 mm Range: 100... 7000 mm Optical resolution: 25 mm Number of rays: 63 Light type: IR Cascadable: Yes With muting function: No Restart lock: adjustable Electrical connection: cable entry for flat plug Case material: Metal, AL, yellow polyester Ambient temperature: 0... +55 °C Protection class IP65 |
| Weight | 1 |
Please contact us to request a price quote for Turck - SLPCE25-1250, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
