Turck - RM-46S8S-3C24B-CT 1M
| Manufacturer | Turck |
|---|---|
| Part Number | RM-46S8S-3C24B-CT 1M |
| Inner Code | 765818 |
| Description | Full rotary encoder - multi-rotation |

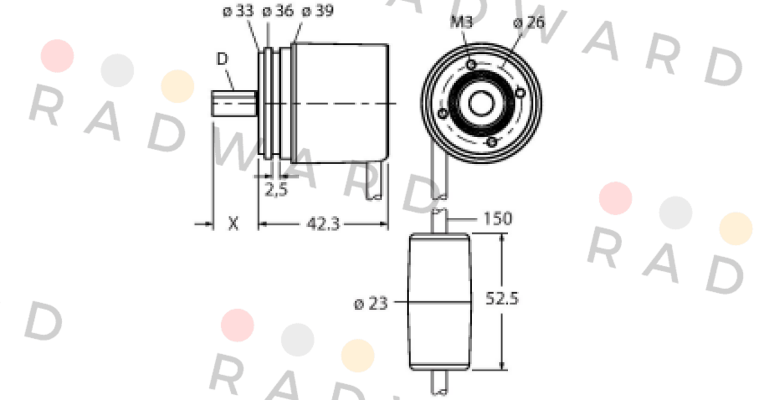

| Technical specification | ID:1544521 Measuring principle Photoelectric Max. Rotation Speed 10000 U/min Starting torque < 0.01 Nm Ambient temperature -40…+85 °C Operating speed 10…30 VDC No load current ≤ 30 mA Output flow ≤ 30 mA short circuit protection yes Cable break/Reverse polarity protection yes Communication protocol SSi Output output 8 wire, Gray coded Output type full multi-turn Resolution, single turn 12 Bit Resolution, multi-turn 12 Bit High signal type 3.8 V Signal level low end 1.3 V Design Solid wishes Flange type Synchro flange Flange diameter Ø 36 mm Shaft type Massive elevator Shaft diameter D (mm) 8 Shaft length X 15 mm Shaft Stainless material steel Body Die-cast material frame |
| Weight | 1 |
