Turck - NI25-CQ40/S1102 5M
| Manufacturer | Turck |
|---|---|
| Part Number | NI25-CQ40/S1102 5M |
| Inner Code | 766423 |
| Description | Inductive Sensor – With Increased Temperature Range |

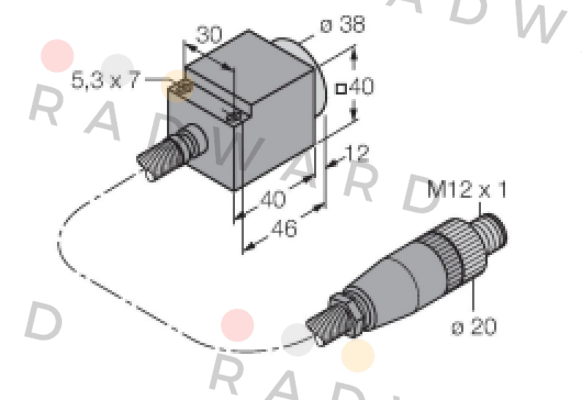

| Technical specification | ID 1602410 Special version S1102 corresponds to: Ambient temperature up to 250 °C General data Rated switching distance 25 mm Mounting conditions Non-flush, partially embeddable Secured operating distance ≤ (0.81 × Sn) mm Repeat accuracy ≤ 2 % of full scale Hysteresis 3…15 % Electrical data Output function NO contact, PNP Mechanical data Design Rectangular, CQ40 Dimensions 52 x 40 x 40 mm Housing material Plastic, AL Active area material PEEK Electrical connection Connector, M12 × 1 max. connector temperature -20…+70°C Cable quality Ø 3.7 mm, PTFE, FEP, 5 m Al cable sheath, Ø 8 mm Core cross-section 3 x 0.34 mm2 Environmental conditions Ambient temperature 0…+250 °C Vibration resistance 55 Hz (1 mm) Shock resistance 30 g (11 ms) Protection class IP60 |
| Weight | 1 |
