Turck - NI25-CQ40-L1131/S1102
| Manufacturer | Turck |
|---|---|
| Part Number | NI25-CQ40-L1131/S1102 |
| Inner Code | 765656 |
| Description | Inductive Sensor – With Increased Temperature Range |

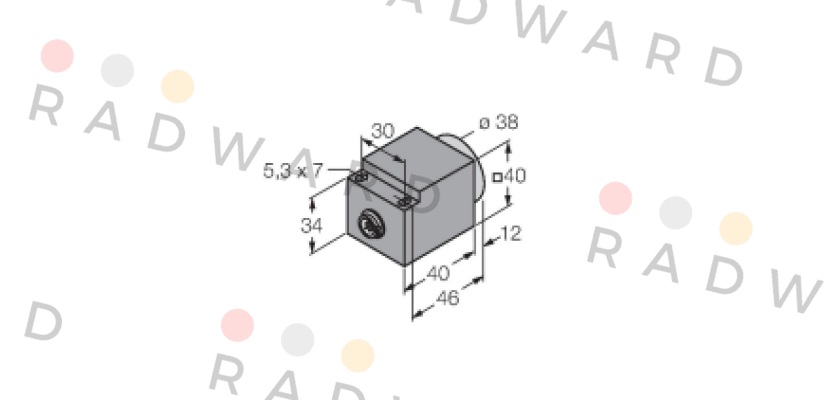

| Technical specification | ID 1602405 Special version S1102 corresponds to: Ambient temperature up to 250 °C General data Rated switching distance 25 mm Mounting conditions Non-flush, partially embeddable Secured operating distance ≤ (0.81 × Sn) mm Repeat accuracy ≤ 2 % of full scale Hysteresis 3…15 % Electrical data Output function NO contact, PNP Mechanical data Design Rectangular, CQ40 Dimensions 52 x 40 x 40 mm Housing material Plastic, AL Active area material PEEK Electrical connection Connector Environmental conditions Ambient temperature 0…+250 °C Vibration resistance 55 Hz (1 mm) Shock resistance 30 g (11 ms) Protection class IP50 MTTF 1437 years acc. to SN 29500 (Ed. 99) 40 °C |
| Weight | 1 |
Please contact us to request a price quote for Turck - NI25-CQ40-L1131/S1102, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
