Turck - LS2TR30-150Q8
| Manufacturer | Turck |
|---|---|
| Part Number | LS2TR30-150Q8 |
| Inner Code | 766587 |
| Description | Light Screen for Machine Safety Applications – Receiver |

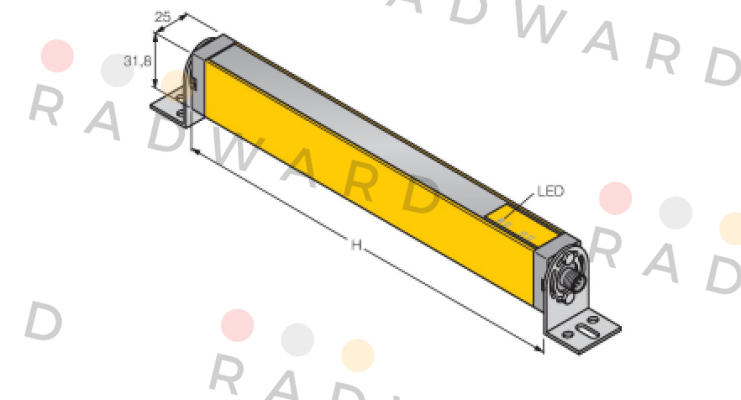

| Technical specification | Type LS2TR30-150Q8 ID 3073534 Optical data Function Light screen Optical resolution 30 mm Range 200…15000 mm Scan field 150 mm Number of beams 8 With muting function no Scan Code None Electrical data Operating voltage 20…28 VDC Residual ripple < 15 % Uss DC rated operational current ≤ 90 mA No-load current ≤ 90 mA Max. current safe output 500 mA Output function 2 x NC (normally closed), 2 × PNP Current output 500 mA Number of safe semiconductor outputs 2 Response time typical < 11 ms With restart interlock no Blanking function no Mechanical data Design Rectangular, EZ-Screen Dimensions 31.8 x 25.2 x 215 mm Housing material Metal, AL, Yellow polyester Lens plastic, Acrylic Cascadable No Electrical connection Connector, M12 × 1 Number of cores 8 Ambient temperature 0…+55 °C Protection class IP65 Power-on indication LED, Green Switching state LED, Red Tests/approvals Vibration resistance 10-55 Hz at 0.35 mm Shock test 10 g at 16 ms (6000 cycles) Approvals CE, cULus listed |
| Weight | 1 |
