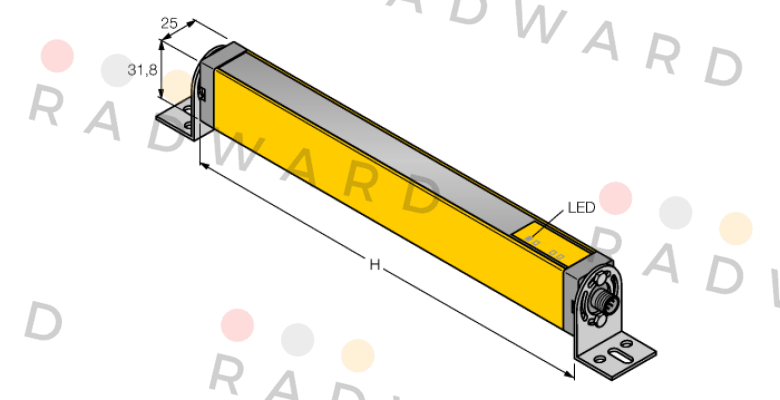

Turck - LS2TP30-750Q88
| Manufacturer | Turck |
|---|---|
| Part Number | LS2TP30-750Q88 |
| Inner Code | 762601 |
| Description | Personal safety light curtain |
| Custom Code | 85365019900 |
| Technical specification | Transmitter/receiver pair Purchase number: 3073548 Alternate order number: 73548 plug, M12 x 1, 8-pin Protection class IP65 Monitoring field height 750 mm resolution 30 mm Internal testing in a 500 ms cycle Range 15 m Operating voltage 24 VDC +‐ 15% Switch output without restart lock (TRIP) Type 2 in accordance with IEC 61496-1, -2; Category 2 PLd in accordance with EN ISO 13849-1; SIL2 in accordance with IEC 61508 Light curtain function Cuboid design Monitoring field height 750 mm Range 200... 15000 mm Optical resolution 30 mm Number of rays 40 Light type IR Cascadable No With muting function No Restart lock no Output function 2 x opener, 2 x PNP Electrical connection connector, M12 x 1 Housing material Metal, AL, Yellow polyester Ambient temperature 0... +55 °C Protection class IP65 |
| Weight | 1 |
