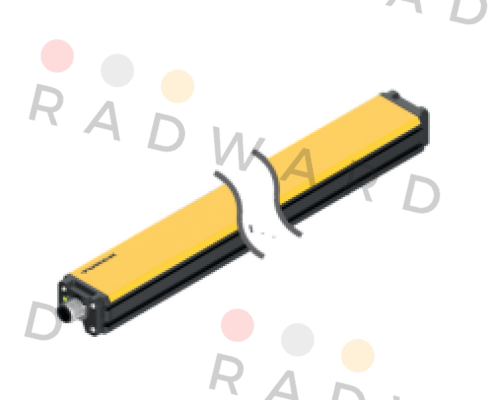

Turck - LI600P1-Q25LM1-LIU5X3-H1151
| Manufacturer | Turck |
|---|---|
| Part Number | LI600P1-Q25LM1-LIU5X3-H1151 |
| Inner Code | 766496 |
| Description | Inductive Linear Position Sensor |
| Technical specification | ID no. 1590065 Measuring principle Inductive Measuring range 600 mm Resolution 12 bit Nominal distance 1.5 mm Blind zone a 29 mm Blind zone b 29 mm Repeat accuracy ≤ 0.026 % of full scale Linearity deviation ≤ 0.065 %f.s. Temperature drift ≤ ± 0.003 % / K Hysteresis not applied Ambient temperature -25…+70 °C Operating voltage 15…30 VDC Residual ripple ≤ 10 % Uss Isolation test voltage ≤ 0.5 kV Short-circuit protection yes Wire breakage/Reverse polarity protection yes / yes (voltage supply) Output function 5-pin, Analog output Voltage output 0…10 V Current output 4…20 mA Load resistance voltage output ≥ 4.7 kΩ Load resistance, current output ≤ 0.4 kΩ Sample rate 500 Hz |
| Weight | 1 |
Please contact us to request a price quote for Turck - LI600P1-Q25LM1-LIU5X3-H1151, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
