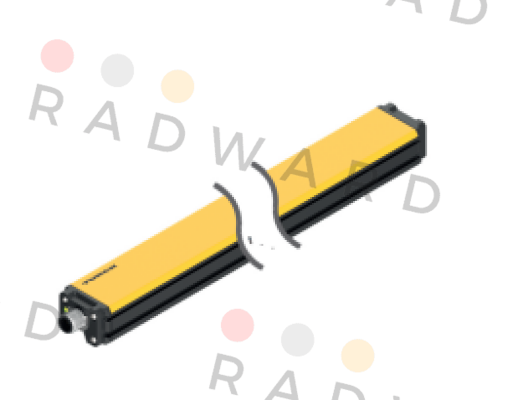

Turck - LI500P0-Q25LM0-ESG25X3-H1181
| Manufacturer | Turck |
|---|---|
| Part Number | LI500P0-Q25LM0-ESG25X3-H1181 |
| Inner Code | 766075 |
| Description | Inductive Linear Position Sensor |
| Technical specification | ID 1590013 Measuring principle Inductive General data Measuring range 500 mm Resolution 0.001 mm Nominal distance 1.5 mm Blind zone a 29 mm Blind zone b 29 mm Reproducibility ≤ 18 µm Linearity deviation ≤ 0.05 % f.s. Temperature drift ≤ ± 0.0001 % / K Hysteresis not applied Electrical data Operating voltage 15…30 VDC Residual ripple ≤ 10 % Uss Isolation test voltage ≤ 0.5 kV Short-circuit protection yes Wire breakage/Reverse polarity protection yes / yes (voltage supply) Communication protocol SSi Output function 8-pin, 25 Bit, Gray coded Process data area Bit 0 … Bit 19 Diagnostic bits Bit 21: Positioning element left the measuring range and is outside the detectable area. Bit 22: Positioning element is in the measuring range, lower signal quality (e.g. distance too large) |
| Weight | 1 |
Please contact us to request a price quote for Turck - LI500P0-Q25LM0-ESG25X3-H1181, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
