Turck - FCS-G1/2A4P-AP8X-H1141/L080
| Manufacturer | Turck |
|---|---|
| Part Number | FCS-G1/2A4P-AP8X-H1141/L080 |
| Inner Code | 766471 |

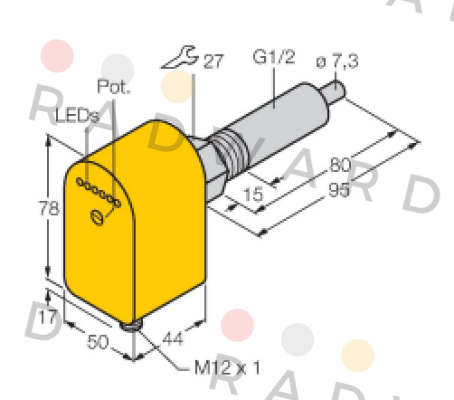

| Description | Flow Monitoring – Immersion Sensor with Integrated Processor |
| Technical specification | ID 6870364 Type FCS-G1/2A4P-AP8X-H1141/L080 Mounting conditions Immersion sensor Water Operating Range 1…150 cm/s Oil Operating Range 3…300 cm/s Stand-by time typ. 8 s (2…15 s) Switch-on time typ. 2 s (1…13 s) Switch-off time typ. 2 s (1…15 s) Temperature jump, response time max. 12 s Temperature gradient ≤ 250 K/min Medium temperature -20…+80 °C Ambient temperature -20…+70 °C Electrical data Operating voltage 19.2…28.8 VDC Current consumption ≤ 60 mA Output function PNP, NO contact Rated operational current 0.4 A Voltage drop at Ie ≤ 1.5 V Short-circuit protection yes Reverse polarity protection yes Protection class IP67 Mechanical data Design Immersion Housing material Plastic, PBT Sensor material Stainless steel, 1.4571 (AISI 316Ti) Max. tightening torque of housing nut 30 Nm |
| Weight | 1 |
Please contact us to request a price quote for Turck - FCS-G1/2A4P-AP8X-H1141/L080, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
