Turck - FCI-N3/4D20A4P-AP8X-H1141
| Manufacturer | Turck |
|---|---|
| Part Number | FCI-N3/4D20A4P-AP8X-H1141 |
| Inner Code | 766217 |
| Description | Flow Monitoring – Inline Sensor with Integrated Processor |

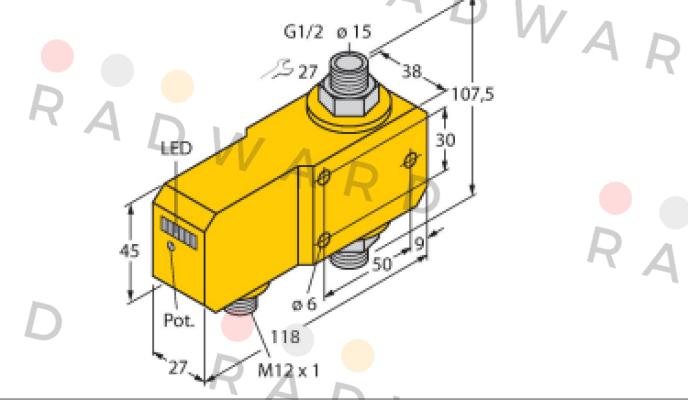

| Technical specification | Type FCI-N3/4D20A4P-AP8X-H1141 Mounting Inline sensor Flow operating range 4…30 l/min Stand-by time 5…15 s Switch-on time 0.5…1 s Switch-off time 0.5…1 s Temperature gradient ≤ 400 K/min Medium temperature 0…+80 °C Ambient temperature 0…+60 °C Operating voltage 19.2…28.8 VDC Current consumption ≤ 50 mA Output function PNP, NO contact Rated operational current 0.2 A Voltage drop at Ie ≤ 1.5 V Short-circuit protection yes Reverse polarity protection yes Protection class IP67 Design Inline Housing material Plastic, PBT Sensor material Stainless steel, 1.4571 (AISI 316Ti) Max. tightening torque of housing nut 30 Nm Electrical connection Connector, M12 × 1 Process Pressure 20 bar |
| Weight | 1 |
