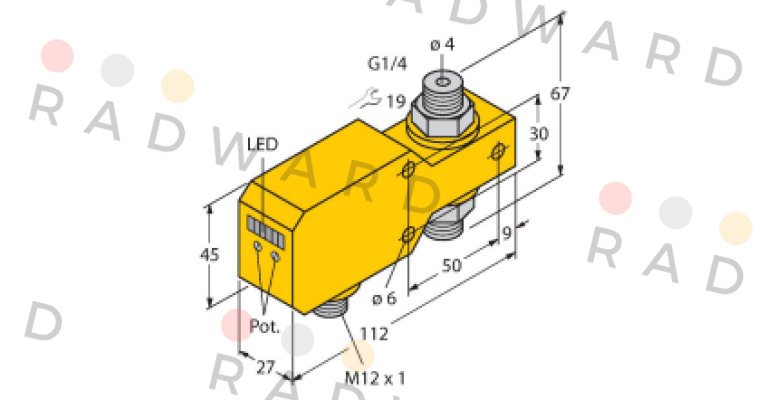

Turck - FCI-D04A4P-LIX-H1141
| Manufacturer | Turck |
|---|---|
| Part Number | FCI-D04A4P-LIX-H1141 |
| Inner Code | 765728 |
| Description | Flow Monitoring – Inline Sensor with Integrated Processor |
| Technical specification | ID 6870641 Type FCI-D04A4P-LIX-H1141 Mounting conditions Inline sensor Flow operating range 0.01…1 l/min Stand-by time 5…15 s Setting time 0.5…1 s Temperature gradient ≤ 400 K/min Medium temperature 0…+80 °C Ambient temperature 0…+60 °C Electrical data Operating voltage 21.6…26.4 VDC Current consumption ≤ 50 mA Output function Analog output Short-circuit protection yes Reverse polarity protection yes Current output 4…20 mA Load 200…500 Ω Protection class IP67 Mechanical data Design Inline Housing material Plastic, PBT Sensor material Stainless steel, 1.4571 (AISI 316Ti) Max. tightening torque of housing nut 30 Nm Electrical connection Connector, M12 × 1 Pressure resistance 20 bar Process connection G 1/4'' Flow state display LED chain, red (1x), green (5x) |
| Weight | 1 |
