Turck - FCI-D03A4-NAEX-H1141/M12
| Manufacturer | Turck |
|---|---|
| Part Number | FCI-D03A4-NAEX-H1141/M12 |
| Inner Code | 765899 |
| Description | Flow Monitoring – Inline Sensor with Separate Processor |

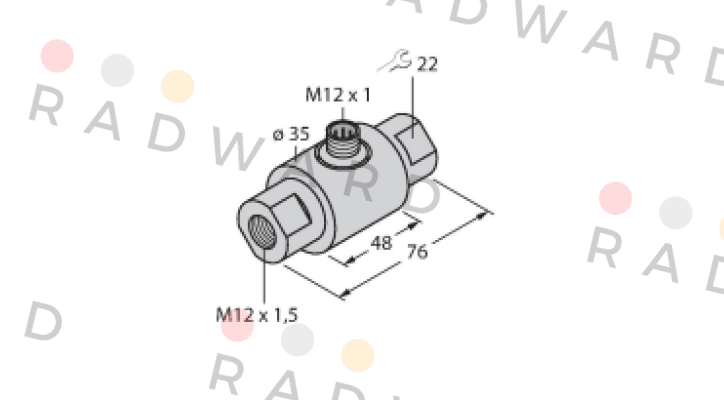

| Technical specification | Type FCI-D03A4-NAEX-H1141/M12 Mounting conditions Inline sensor Flow operating range 0,01…0,15 l/min Stand-by time typ. 8 s (2…15 s) Switch-on time typ. 2 s (1…15 s) Switch-off time typ. 2 s (1…15 s) Temperature jump, response time max. 12 s Temperature gradient ≤ 250 K/min Medium temperature -20…+70 °C Device marking É II 2 G EEx ib IIC T6 Ignition protection category Ex ib IIC Power ≤ 0.69 W Internal inductances/capacitances negligibly small Ex approval acc. to conformity certificate TÜV 96 ATEX 1101 Protection class IP67 Design Inline Housing material Stainless steel, V4A (1.4571) Sensor material Stainless steel, V4A (1.4571) Electrical connection Connectors, M12 × 1 Pressure resistance 6 bar Process connection M12 × 1.5 |
| Weight | 1 |
