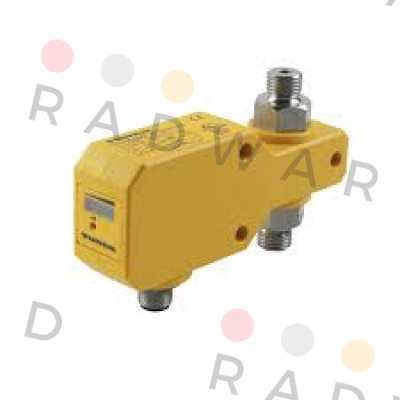

Turck - FCI-1/4TCD04A4P-AP8X-H1141
| Manufacturer | Turck |
|---|---|
| Part Number | FCI-1/4TCD04A4P-AP8X-H1141 |
| Inner Code | 765600 |
| Description | Flow Monitoring – Inline Sensor with Integrated Processor |
| Technical specification | ID no. 6870823 Type FCI-1/4TCD04A4P-AP8X-H1141 Mounting Inline sensor Flow operating range 0.001…0.2 l/min Stand-by time 5…20 s Switch-on time 0.5…3 s Switch-off time 0.5…3 s Temperature gradient ≤ 400 K/min Medium temperature 0…+60 °C Ambient temperature 0…+60 °C Operating voltage 19.2…28.8 VDC Current consumption ≤ 50 mA Output function PNP, NO contact Rated operational current 0.2 A Voltage drop at Ie ≤ 1.5 V Short-circuit protection yes Reverse polarity protection yes Protection class IP67 Design Inline Housing material Plastic, PBT Sensor material Stainless steel, 1.4571 (AISI 316Ti) Electrical connection Connector, M12 × 1 Process Pressure 10 bar Process connection ¼” tube connection Switching state LED chain, Green/Yellow/Red Flow state display LED chain Indication: Drop below setpoint LED red Indication: Setpoint reached LED yellow Indication: Setpoint exceeded 4 x LEDs green |
| Weight | 1 |
Please contact us to request a price quote for Turck - FCI-1/4TCD04A4P-AP8X-H1141, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
