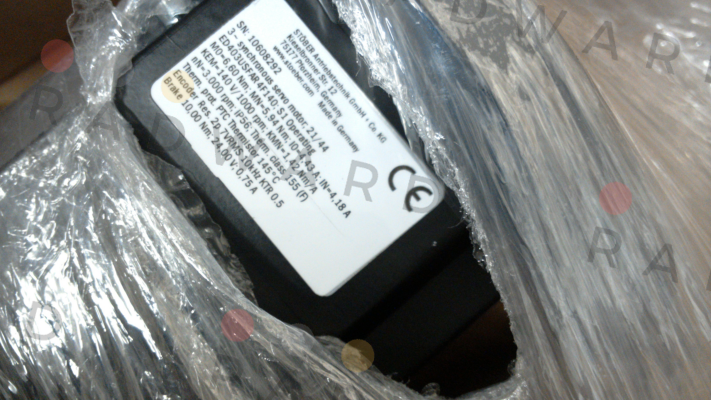

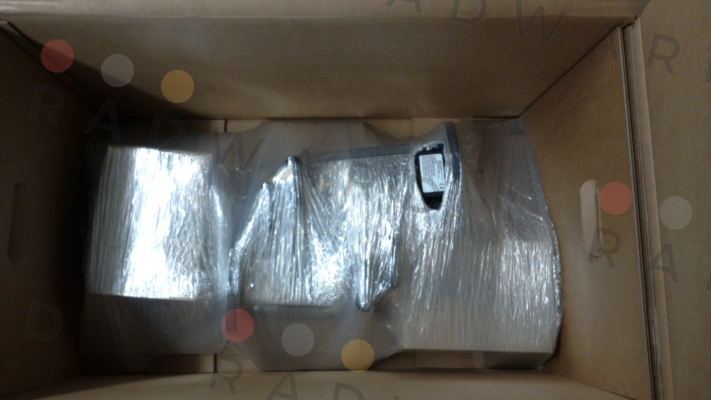

Stober - P/N: MV0000052246, Type: ED403USFAR4F140
| Manufacturer | Stober |
|---|---|
| Part Number | P/N: MV0000052246, Type: ED403USFAR4F140 |
| Inner Code | 4387224 |
| Description | synchronous servo motor |
| Custom Code | 85015220 |
| Technical specification | Standstill current 4.43 Am. Rated current 4.18 A Downtime torque 6.60 Nm engine torque 5.94 Nm engine speed 3,000 rpm Motor power 1.87 kW ED/EK engine type designation ED403USFAR4F140 Cooling type convection cooling IC output side IEC Ø160 PR 110 LK 130 shaft version Ø19x40 without feather key drive controller manufacturer STOBER compatible Encoder connector BG/type foreign drive controller con.23 DC cord voltage 540V dc cord voltage Drive controller type/ connection SDS 4000/compatible connection diagram 442662 Encoder type resolver Encoder type resolver 2-p. GR21 standard Rated speed nN 3000 rpm 540V (KEM=140) ED Plug type angle rotatable Mating plug with mating plug (not OCS) power connection connector 6-pin con.23 Position of connectors 270° Cable entry left * PTC thermal winding protection in encoder connection Ambient temperature -15 to +40°C standard Thermal class (VDE 0530) 155 F Protection class (EN 60529) IP56 (EN 60529) Option engine nameplate adhesive sign without STOBER logo brake 10Nm mbs/10nm MBD/FD 24VDC S1 Operating mode servo motors Paintwork K /1-layer paint color RAL 9005 jet black downforce painting options not painted |
Please contact us to request a price quote for Stober - P/N: MV0000052246, Type: ED403USFAR4F140, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
