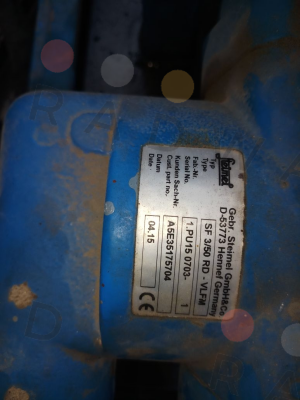

Steimel - ASF3-50RD-171197R
| Manufacturer | Steimel |
|---|---|
| Part Number | ASF3-50RD-171197R |
| Inner Code | 3331404 |
| Description | GEARPUMP |
| Custom Code | 84136039 |
| Technical specification | A-SF3/50RD-VLFM, pumping unit, 2-18 bar 4.0 kW, 1500, 230/400 V, 50 Hz, IP55, F, B5, IE3, steel base Gear pump unit: SF 3/50 RD - VLFM Artikel-Nr.: ASF3-50RD-171197R Dimensionsblatt: DPA053D-112LFM-R31 Spare parts list: DET053050RD--165R Suction and Pressure Connection: SAE 1 1/2 Housing parts: EN-GJL-250 (GG-25) Pinion shafts, noise-resistant: 16MnCrS5, egh., angular distortion Storage: multi-layer Shaft sealing: radial shaft sealing ring Elastomers: FKM Delivery medium: lubricating oil Viscosity: 50 - 5000 cSt Temperature: 10 - 60°C Flow rate: approx. 70.8/84.9 l/min. Pressure: 5 bar Speed: 1450/1740 rpm Pressure relief valve Opening pressure: 8 bar Adjustment range: 2 - 18 bar Direction of Rotation: Right Test run: yes, with HLPD 46 Coupling: BKUA055-1928-301 Pump Carrier with Foot: BLF053250128--03, St - welded, primed Three-phase engine: LDM112-04-074 (Birkenbeul) Engine data: Power 1/ 2:4.0 /4.6 kW Speed 1/ 2:1500 /1800 rpm Voltage/frequency 1:230 /400 volts at 50 Hz Voltage/frequency 2:265 /460 volts at 60 Hz Efficiency class: IE3 With additional sign (without IE3) for Voltage/frequency: 220-240/380-420 V at 50/60 Hz 250-280/440-480 V at 60 Hz reduce. Output: 3.68/4.23 kW at KT 50°C Protection class: IP 55 Insulation class: F to B Special Feature: Tropically Isolated for 100% Relative humidity at 50°C Design: B 5 Aggregate paint: primed Type plate: ETY924-D-E--PE02 |
| Weight | 50 |
Please contact us to request a price quote for Steimel - ASF3-50RD-171197R, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
