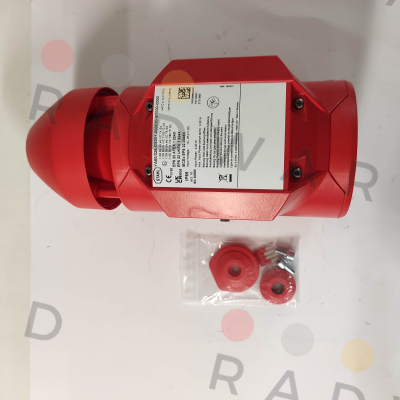

Stahl - 312375
| Manufacturer | Stahl |
|---|---|
| Part Number | 312375 |
| Inner Code | 5031735 |
| Description | Sound alarm device |
| Custom Code | 85311095 |
| Technical specification | acoustic signal device acoustic signal transmitter YA60/326-DS001-000030-ST000 -0000 Material number: 312375 Housing material: powder-coated aluminum Case material 2: seawater resistant Housing color: red, similar to RAL 3020 Mounting: L-bracket Horn material: PC/PBT Sound pressure level: max. 114 dB (A) @ 1m Volume control: max. -18 dB (A) adjustment Operating tax DC min.: 12V Operating tax DC max.: 27.2V Height: 319 mm Width: 176 mm Min. ambient temperature: -40°C Max. ambient temperature: 50°C Humidity: 95% Protection class IP (IEC 60598): IP66 Gas explosion protection: II 2 G Ex db eb IIC T6 Gb Gas explosion protection2: II 2 G Ex db eb IIC T4 Gb Dust explosion protection: II 2 D Ex tb IIIC T80 °C Db Dust explosion protection2: II 2 D Ex tb IIIC T100 °C Db Connection type: Push in Sealing plugs: 2x M20 + 2x M25 Cable and cable entries: 1 x M20 Ø 4 — 13 mm 1 x M25 diameter 7-17mm Fastener material: stainless steel For more information, see: r-stahl.com, web code: YA60C |
Please contact us to request a price quote for Stahl - 312375, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
