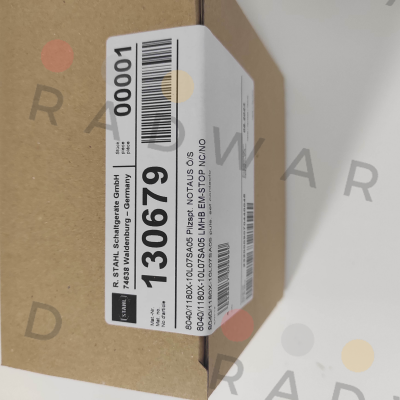

Stahl - p/n: 130679, Type: 8040/1180X-10L07SA05
| Manufacturer | Stahl |
|---|---|
| Part Number | p/n: 130679, Type: 8040/1180X-10L07SA05 |
| Inner Code | 3777209 |
| Description | Control device system |
| Custom Code | 85371098 |
| Technical specification | Rated operating voltage AC: 550V Rated operation current: 10A Case material: polyester resin Area of use (zones): 1, 2, 21, 22 Gas explosion protection: II 2 G Ex db eb IIC T6 Gb Dust explosion protection: II 2 D Ex tb IIIC T80 °C Db Min. ambient temperature: -60 °C Ambient temperature max.: +40 °C Degree of protection (IP): IP66 Installation location in the middle: EMERGENCY STOP mushroom lock button red - (rotation arrow) Installation element middle: contact element Switching process middle: NC open/NO contact Cable entry at the bottom: 1 x M25 Ø 7... 17 mm Flanges and plates: without flanges, without plates |
| Weight | 0.4 |
Please contact us to request a price quote for Stahl - p/n: 130679, Type: 8040/1180X-10L07SA05, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
