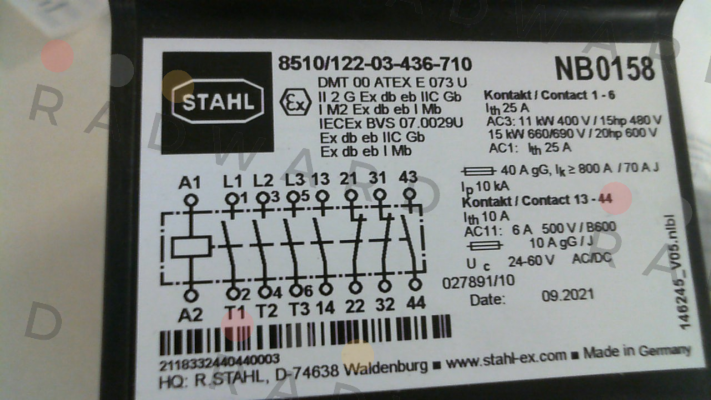

Stahl - P/N: 268751, Type: 8510/122-03-436-710
| Manufacturer | Stahl |
|---|---|
| Part Number | P/N: 268751, Type: 8510/122-03-436-710 |
| Inner Code | 3935908 |
| Description | Explosion-proof contactor |
| Custom Code | 85363010 |
| Technical specification | Rated actuating voltage : 24 ... 60 V AC/DC Switching capacity : 10 / 11 kW / 400 V AC3 Conventional thermal current : 25 A Main contacts : 3-pole (3 NOs) Auxiliary contacts : 4 (2 NO + 2 NC) Enclosure material : Epoxy resin Application range (zones) : 1 , 2 Gas explosion protection : II 2 G Ex de IIC Firedamp protection : I M2 Ex de I Min. ambient temperature : -20 °C Max. ambient temperature : +40 °C Degree of protection (IP) : IP20 |
Please contact us to request a price quote for Stahl - P/N: 268751, Type: 8510/122-03-436-710, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
