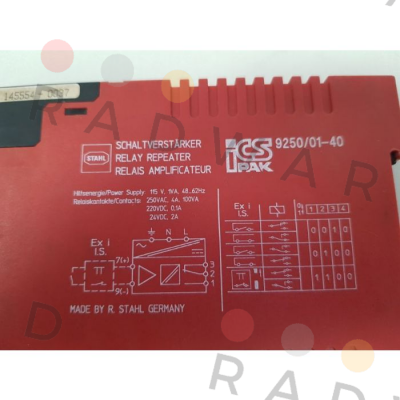

Stahl - 9250/01-40

Manufacturer Stahl
Part Number 9250/01-40
Inner Code 4696719
Description Relay repeter
Technical specification Stahl 9250/01-40 relay repeater stahl relay repeater 9250/01-40 [eex ia] ptb nr. ex-89.c.2025 um=250v; u 10,5 v i 32 ma; p 84 mw ta 60°c ism group 1; class a class i,ii,iii, div.1,groups a,b,c,d,e,f,g 145554-0037 icspak hilfsenergie/power supply: 115v, 1va, 48...62hz relaiskontakte/contacts: 250vac, 4a, 100va 220vdc, 0,1a 24vdc, 2a made by r. stahl, germany weight: 130 gm

Please contact us to request a price quote for Stahl - 9250/01-40, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Stahl-9250/01-40 price

More products of Stahl

  • 130679

    Control device system Series ConSig 8040 explosion-protected Type : 8040/1180X-10L07BA05 Rated operational voltage AC : 550 V Rated operational current : 10 A Enclosure material : Polyester resin Application range (Zone) : 1 , 2 , 21 , 22 Gas explosion protection : II 2 G Ex de IIC T6 Dust explosion protection : II 2 D Ex tD A21 80 °C Min. ambient temperature : -20 °C Max. ambient temperature : +40 °C Type of protection (IP) : IP66 Installation position middle : EM-STOP stay-put button red - (turning arrow) with standard seal Built-in element middle : Contact element Switching arrangements middle : NC / NO Cable entry bottom : 1 x M25 Ø 7 ... 17 mm Flanges and plates : without flange, without plate

  • 130692

    8040 / 1280x-01L13BA05-01L08BA05 Command / signaling device

  • 130899

    8040 / 1280x-01L13BA02-01L08BA01 Command / signaling device pushbutton

  • 132530

    (8080 / 1-2 NO / NC Contact element SPARE PART snap-action contact with spring corresponds to your part no. 132528)

  • 132636

    8082 / 1-1-00 break contact element screw command row of buttons 8082 explosion protected, Connection: Screw Contacts: 1 NC Contact Material: Silver Nickel For use in: Zones 1 & 2

  • 132640

    8082 / 1-2-00 normally open contact element screw command row of buttons 8082 explosion protected, Connection: Screw Contacts: 1 NO Contact Material: Silver Nickel For use in: Zones 1 & 2

  • 132973

    8102/21-32-C995 Junction Box

  • 133128

    8118/122-199 Terminal box Ex e

  • 134698 / 8125/1061-2

    junction box; Protection: IP66; Inputs: 1 X M25, 4 X M20; Body material: SS; Cover material: SS; Sizes: 236mm x 176mm x 91mm COMPLETE with terminals for 2.5 mm2 WIRES

  • 136126

    8146/5052-C796 alarm and fire alarm with mushroom put button

  • 136678 8146/5041

    control box Type: 8146/5041 Technical specifications: Gas - Explosion protection: Ex II 2 G Ex de IIC T6 Gb Dust - Explosion protection: Ex II 2 D Ex tb IIIC T80 ° C Db IP66 Test Certificate ATEX: PTB 01 ATEX 1024 Test certificate IECEX: IECEx PTB 06.0090 Material: Polyester resin Dimensions: 112 x 170 x 91 mm IP 66 Ambient temperature: -20 ° C ... + 40 ° C Rated voltage: 230 V / 50 Hz Rated current: 6 A Control voltage: V / Hz Schematic: Without wiring Other Approval: on request 1 ST Pilzschluesseltaster EMERGENCY STOP MS 1 Contact element Oe + S 1 ST protective conductor terminal USLKG 5 1 ST: Lower 8161/5 M20-13-fitting M20x1,5sw

  • 137051 / 8146/1051 TERMINAL BOX EX E

    Technical data: Gas - Explosion protection: Ex II 2 G Ex e II T6 Dust - Explosion protection: Ex II 2 D Ex tD A21 IP66 T 80 °C Certificate ATEX: PTB 01 ATEX 1016 Certificate IECEx: IECEx PTB 06.0046 Material: Polyester resin Dimension: 170 x 170 x 91 mm Degree of protection: IP 66 Ambient temperature: - 40°C ... + 40°C Rated voltage: 550 V Cross section: 2.5 mm² Also certified to: on request Fitting position: side D bottom, rail horizontal 12 pc(s) line-up terminal WDU 2,5/E labelling: 1-12 1 pc(s) TS35 mounting rail TS35 in enclosure 8146 for terminals length: 133mm 1 pc(s) 8146 PE-Rail 7x4 mm² gn-ye 1 pc(s) Side: bottom 8161/5-M25-17 cable gland M25x1,5 black 1 pc(s) Side: left 8161/5-M25-17 cable gland M25x1,5 black 3 pc(s) Side: left 8161/5-M16-10 cable gland M16x1,5 black 1 pc(s) Side: right 8161/5-M25-17 cable gland M25x1,5 black 3 pc(s) Side: right 8161/5-M16-10 cable gland M16x1,5 black CCT No.: 85369085 DE Net weigth: 0,770 KG

  • 137051 . 8146/1051 TERMINAL BOX EX E

    Technical data: Gas - Explosion protection: Ex II 2 G Ex e II_ Dust - Explosion protection: Ex II 2 D Ex tD A21 IP66 Certificate ATEX: PTB 01 ATEX 1015U Certificate IECEx: IECEx PTB 06.0044U Material: Polyester resin Dimension: 170 x 170 x 91 mm Degree of protection: IP 66 Ambient temperature: - 20 °C ... + 55 °C Rated voltage: - V Cross section: - mm² Also certified to: on request Fitting position: side D bottom, rail horizontal 1 pc(s) TS15 mounting rail TS15 in enclosure 8146 for terminals length: 133mm 1 pc(s) Side: bottom 8161/5-M25-17 cable gland M25x1,5 black 1 pc(s) Side: left 8161/5-M25-17 cable gland M25x1,5 black 2 pc(s) Side: left 8161/5-M16-10 cable gland M16x1,5 black 1 pc(s) Side: right 8161/5-M25-17 cable gland M25x1,5 black 2 pc(s) Side: right 8161/5-M16-10 cable gland M16x1,5 black CCT No.: 85369085 DE Net weigth: 0,770 KG

  • 138382

    Blanking Plug

  • 138382 BLANKING PLUGS F. CABLE GLANDS M25.....25PCS

    .CCT No.: 39269097 DE Net weigth: 0,130 KG

  • 138383

    (nut M16 brass nickel plated 50pcs Locknut, metric brass, nickel plated Internal thread d: M16 x 1.5 Width across flats [mm]: 19 Packing unit: 50pieces CCT No.: 74153300 IN Net weigth: 0,135 KG)

  • 138383 NUT M16 BRASS NICKEL PLATED 50PCS

    .Locknut, metric brass, nickel plated Internal thread d: M16 x 1.5 Width across flats [mm]: 19 Packing unit: 50pieces CCT No.: 74153300 IN Net weigth: 0,135 KG

  • 138389

    nut M20x1.5

  • 138394

    Blanking Plug

  • 138395

    (nut M25 brass nickel plated 50pcs Locknut, metric brass, nickel plated Internal thread d: M25 x 1.5 Width across flats [mm]: 29 Packing unit: 50pieces CCT No.: 74153300 IN Net weigth: 0,348 KG)

  • 138395 NUT M25 BRASS NICKEL PLATED 50PCS

    .Locknut, metric brass, nickel plated Internal thread d: M25 x 1.5 Width across flats [mm]: 29 Packing unit: 50pieces CCT No.: 74153300 IN Net weigth: 0,348 KG

  • 138406

    (blanking plugs f. cable glands Pg9 /M16.....50pcs CCT No.: 39269097 DE Net weigth: 0,061 KG)

  • 138406 BLANKING PLUGS F. CABLE GLANDS PG9 /M16.....50PCS

    .CCT No.: 74153300 IN Net weigth: 0,061 KG

  • 138417

    (blanking plugs f. multiple cable glands, d 5,5mm...50pcs CCT No.: 39269097 DE Net weigth: 0,031 KG)

  • 239156

    Cable gland with reduction sealing insert explosion-protected

  • 138474 8161/5-M25-96

    .Cable gland Ex e polyamide, 4x4-6mm, 50 pcs Cable Glands Series 8161, explosion protected Version: 8161/5 Ex e (black) Thread size: M25 x 1.5 Number of entries: 4 Cable dia. range [mm]: 4 ... 6 For use in: Zones 1 & 2, 21 & 22 CCT No.: 39269097 DE Net weigth: 1,000 KG

  • 138482

    8161/5-M16-9 Cable gland Ex e polyamide, 4-9mm, 50 pcs Cable Glands Series 8161, explosion protected Version: 8161/5 Ex e (black) Thread size: M16 x 1.5 Number of entries: 1 Cable dia. range [mm]: 4 ... 9 For use in: Zones 1 & 2, 21 & 22

  • 138520 8161/5-M25-17

    (Cable Glandsexplosion-protectedType : 8161/5-M25-17Thread size : M25Thread length : 10 mmMaterial : PolyamideColour : blackClamping range : 7 ... 17 mm2Cable armour : Unarmoured cablesApplication range (Zone) : 1 , 2 , 21 , 22Type of protection (IP) : IP66Gas explosion protection : II 2 G Ex e IIDust explosion protection : II 2 D Ex tD A21Min. ambient temperature : -40 °CMax. ambient temperature : +75 °CCCT No.: 39269097 DENet weigth: 0,020 KG)

  • 138772 8163/2-20-A2F-M20 CABLE GLAND

    .Cable Glands Ex d and Ex e for Unarmoured Cables Series 8163/2-A2F, explosion protected Thread size C: M20 x 1.5 Cable diameter A: min.6.5 max.14.0 PVC-shroud: HV 05 Version: BS 6121, EN 50262 For use in: Zones 1 & 2, 21 & 22 CCT No.: 85369010 GB Net weigth: 0,070 KG

  • 143524 8290/3-M25 STOPPING PLUG M25X1,5

    .Stopping Plugs Series 8290, explosion protected Thread size: M25 x 1.5 Material: Polyamide Colour: black For use in: Zones 1 & 2, 21 & 22 CCT No.: 39269097 DE Net weigth: 0,007 KG
