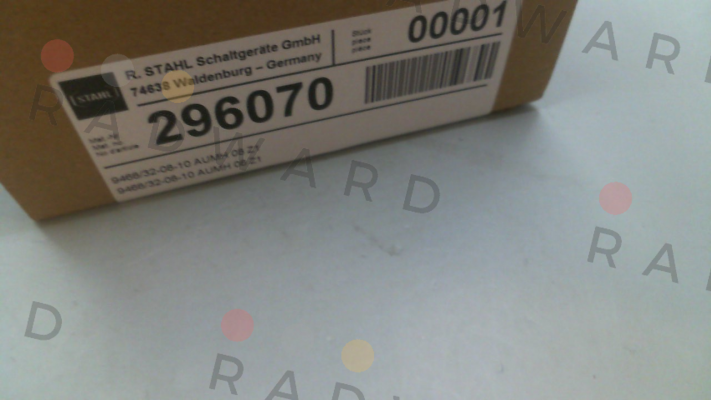

Stahl - 296070 / 9468/32-08-10
| Manufacturer | Stahl |
|---|---|
| Part Number | 296070 / 9468/32-08-10 |
| Inner Code | 4520715 |
| Description | Analog Universal Module |
| Custom Code | 85363010 |
| Technical specification | Remote I/O IS1+ analog universal module HART, for Zone 1 Ex i, explosion-proof Area of application (zones): 1, 2 Ex interface zone: 0, 1, 2, 20, 21, 22 Number of channels: 8 Ex i inputs/outputs Max. voltage Uo: 24.4 V Max. current Io (2-wire): 80 mA Max. current Io (3-wire): 81.8 mA Max. power Po (2-wire): 488 mW Max. power Po (3-wire): 499 mW Min. ambient temperature: -40 °C Ambient temperature max.: +75 °C Gas explosion protection: II 2 (1) G Ex ia [ia Ga] IIC T4 Gb Dust explosion protection: II (1) D [Ex ia Da] IIIC |
Please contact us to request a price quote for Stahl - 296070 / 9468/32-08-10, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
