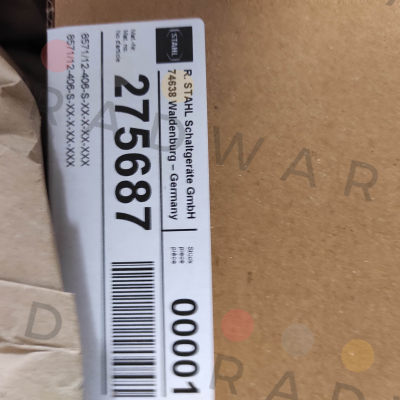

Stahl - P/N: 275687, Type: 8571/12-406-S-XX-X-XX-XXX
| Manufacturer | Stahl |
|---|---|
| Part Number | P/N: 275687, Type: 8571/12-406-S-XX-X-XX-XXX |
| Inner Code | 4921695 |
| Description | 32 A plug |
| Custom Code | 85366990 |
| Technical specification | explosion-proof 8571/12-406-S-XX-X-XXX Rated operating voltage: 380... 415 V AC Frequency range: 50/60 Hz Detailed number of poles: 3 P + PE Code color: red Coding (time setting): 6 Housing material: polyamide, glass-reinforced Silicone-free: No Range of application (zones): 1,2,21,22 Scope: European Union (ATEX) Gas explosion protection: II 2 G Ex eb IIC T6... T5 Gb Dust explosion protection: II 2 D Ex tb IIIC T81 °C Db Min. ambient temperature: -50 °C Max. ambient temperature: +25 °C Rated operation current: 32 A Min.2 ambient temperature: -50 °C Max. ambient temperature.2: +65 °C Rated operating current2:16 A Ambient temperature min. F: -58 °F Ambient temperature max. F: +77 °F Ambient temperature min. °F 2: -58 °F Ambient temperature max. °F 2: +149 °F Protection class IP (IEC 60529): IP66 Protection class IP (IEC 60079): IP64 Impact resistance (IEC 60079): 7.00 J Impact resistance (IEC 62262): IK10 Cable diameter: 13.00 - 25.00 mm |
Please contact us to request a price quote for Stahl - P/N: 275687, Type: 8571/12-406-S-XX-X-XX-XXX, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
