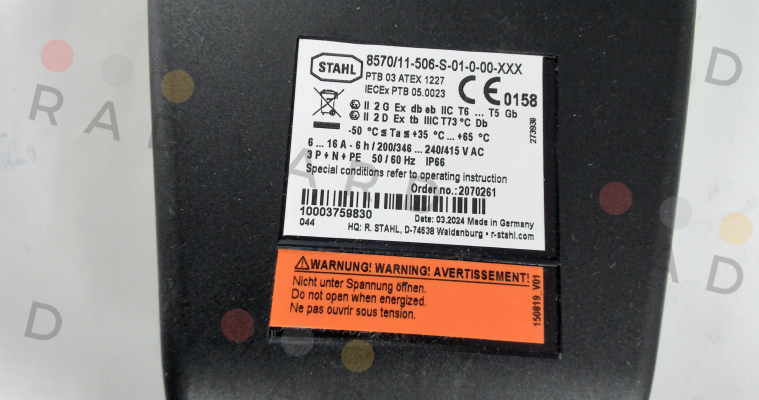

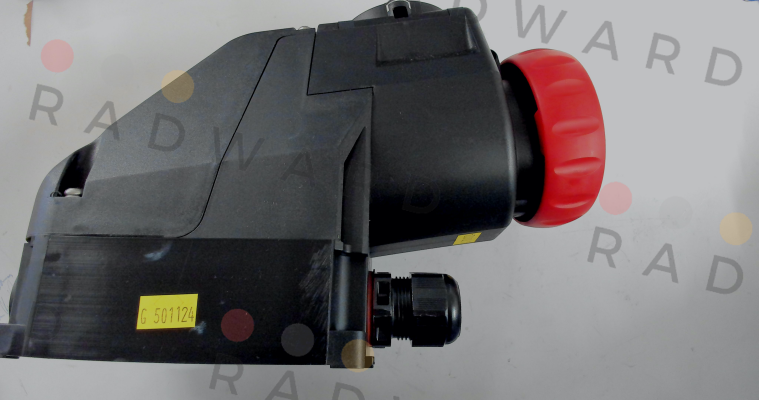

Stahl - 273898 8570/11-506-S-01-0-00-XXX
| Manufacturer | Stahl |
|---|---|
| Part Number | 273898 8570/11-506-S-01-0-00-XXX |
| Inner Code | 4962878 |
| Description | Wall socket |
| Technical specification | 16 A explosion-proof Rated operating voltage: 200/346 ... 240/415 V AC Frequency range: 50/60 Hz Detailed number of poles: 3 P + N + PE Identifying color: red Coding (time setting): 6 Housing material: Polyamide, glass fiber reinforced Silicone-free: No Area of application (zones): 1,2,21,22 Scope: European Union (ATEX) Gas explosion protection: II 2 G Ex db eb IIC T6 # T5 Gb Dust explosion protection: II 2 D Ex tb IIIC T73 °C Db Ambient temperature min.: -50 °C Ambient temperature max.: +35 °C Rated operating current: 16 A Ambient temperature min.2: -50 °C Ambient temperature max.2: +65 °C Rated operating current2: 6 A Ambient temperature min. F: -58 °F Ambient temperature max. F: +95 °F Ambient temperature min. °F 2: -58 °F Ambient temperature max. °F 2: +149 °F Protection class IP (IEC 60529): IP66 Protection class IP (IEC 60079): IP64 Impact resistance (IEC 60079): 7.00 J Impact resistance (IEC 62262): IK10 Introduction 1: M25 x 1.5 Introduction 1 Type: Polyamide cable gland Introduction 1 Type: 8161/7-M25-1707-LT Introduction 1 clamp area. : 7 - 17mm Introduction 2: M25 x 1.5 Introduction 2 Type: Polyamide sealing plug Introduction 2 Type: 8290/3-M25 |
Please contact us to request a price quote for Stahl - 273898 8570/11-506-S-01-0-00-XXX, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
