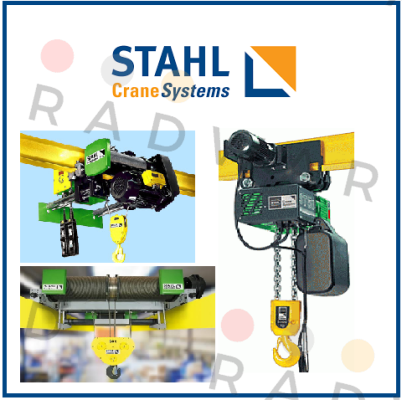

Stahl CraneSystems - ST 1005-12/3 2/1 / with operating limit switch clap hook position up
| Manufacturer | Stahl CraneSystems |
|---|---|
| Part Number | ST 1005-12/3 2/1 / with operating limit switch clap hook position up |
| Inner Code | 4897973 |
| Custom Code | 84251100 |
| Technical specification | ST 1005-12/3 2/1 Electric Chain Hoist Made taking into account the necessary content from the Product Safety Act (Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU), product-related EN standards and BGV. HD class according to DIN EN 13001-2 HD1 M4 engine classification M4 load rating IP protection class IP55 Place of use in the hall Ambient temperature min -20 °C Ambient temperature max +40 °C CE certification HOIST payload 1,000 kg Lifting height (max) 3,000 m Slow lifting speed 1.50 m/min Fast lifting speed 6.00 m/min Number of pins 8/2 E22 hoist motor Fine stroke power 0.30 kW Main lift output 1.20 kW ED fine stroke 20% ED main lift 40% Feinhub 240 circuits Main stroke 120 circuits Chain type load chain galvanized Item ID rope 1/chain 331 006 9 Length of chain 1 6.610 m Plastic chain storage Load handling device type RSN 025 Chassis version stationary Chassis type - - - Suspension Hook suspension Traction motor nominal frequency 0 Hz ELECTRICAL CONTROL CONTACTOR CONTROL Crane builder protection control no Hoist motor nominal frequency 50 Hz Operating voltage 400 V Control voltage 48 V Frequency 50 Hz Power limit switch clap hook position at the top Control unit brand STH Control cable nominal length 1.800 m Polyurethane coating Cat layer thickness 80 μm Body colour RAL 7021, black grey Color of branding parts RAL 6018, yellow green EQUIPMENT: - Built-in operating hours meter |
Please contact us to request a price quote for Stahl CraneSystems - ST 1005-12/3 2/1 / with operating limit switch clap hook position up, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
