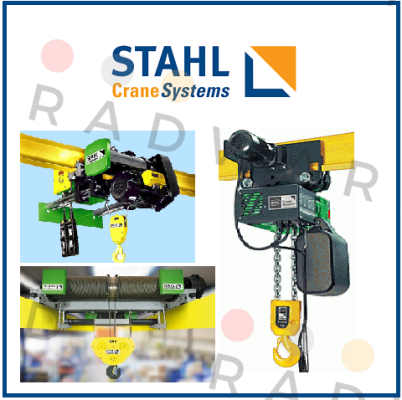

Stahl CraneSystems - ST 5025-4/1 2/1 ex
| Manufacturer | Stahl CraneSystems |
|---|---|
| Part Number | ST 5025-4/1 2/1 ex |
| Inner Code | 4205939 |
| Technical specification | STAHL CraneSystems electric hoist Luls in accordance with the rules of the EC Machinery Directive Device Safety Act and BGV. Engage unit operating mode according to DIN EN 13001-2: HD1 Classification of engine (FEM/ISO): M4 Classification of load-bearing devices (FEM/ISO) M5 Degree of protection EN 60529: IP66 Designed for indoor operation, ambient temperature -20 to +40 C Exposure protection according to ATEX Directive 2014/34/EU Group II Device Category 2G Ex db eb IIC T4 Gb-Ex h IIC T4 Gb for Zone 1 Lifting load capacity: 5000 kg Lifting height: 6.00 m Lifting speed 0.30 - 2.00 m/min Lesitung (ist) 0.28/2.00 kW For design data, see product info/engine data sheet Duty cycle: 20/40% Load chain galvanized Fahwerk Electric Suspension Standard Height Driving speed 5,0 - 20,0 m/min Power 0.06/0.32 kW Duty cycle: 20/40% Curve radius min. 4000 mm flange width: 300 mm Please confirm flange width when ordering! Electrics Contactor Control Operating voltage 400 B Control voltage 48 V Frequeny of the plant 50 Hz Control unit SwhinkL. 4.80 m control cable Paint Hoist - Top Paint Polyurethane 80 mm Topcoat Hoist in colour RAL 7021, black-grey top coat Equipment box cover and counterweight in colour RAL 6018 yellow-green note overload protection and note limitation by Slip clutch (must not be started in operation) |
Please contact us to request a price quote for Stahl CraneSystems - ST 5025-4/1 2/1 ex, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
