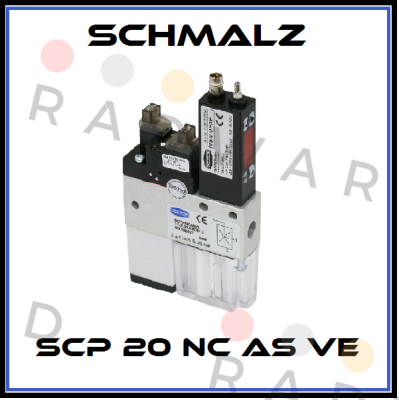

Schmalz - SCP 20 NC AS VE
| Manufacturer | Schmalz |
|---|---|
| Part Number | SCP 20 NC AS VE |
| Inner Code | 532090 |
| Description | Compact ejector |
| Technical specification | Technical Data Attribute Value Nozzle diameter 2 mm Degree of evacuation 85 % Suction rate (max) 116 l/min Suction rate (max) 7 m³/h Air consumption (during evac.) 190 l/min Air consumption (during evac.) 11.4 m³/h Air consumption (blow off) (max) 200 l/min Noise level (workp. gripped) 76 dB Noise level (free) 78 dB Pressure range (operating pressure) 5.0 ... 6.0 bar Int. hose diameter (recom.) comp.-air 4 mm Int. hose diameter (recom.) vacuum side 9 mm Weight 0.465 kg Ambient temperature 0 ... 45 °C Control Normally closed Pressure range (operating pressure) 72.5 ... 87.0 psi Suction rate (max) 4.096 cfm Air consumption (during evac.) 6.709 cfm Air consumption (blow off) 7.062 cfm Product family SCP |
| Weight | 1 |
Please contact us to request a price quote for Schmalz - SCP 20 NC AS VE, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
