Schmalz - P/N: 10.01.06.01008 Type: SAB 50 NBR-60 M14x1.5-AG
| Manufacturer | Schmalz |
|---|---|
| Part Number | P/N: 10.01.06.01008 Type: SAB 50 NBR-60 M14x1.5-AG |
| Inner Code | 1799100 |

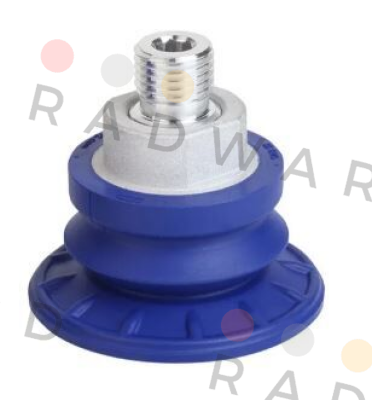

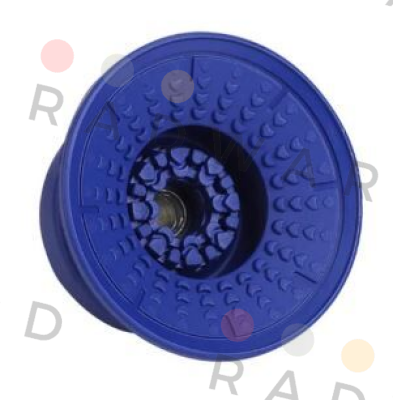

| Description | Bellows suction cup (round) |
| Technical specification | for very dynamic handling of smooth and oily workpieces Suction force (-600mbar) 53 N Pull-off force 87 N Lateral force 95 N Lateral force (oily surface) 52 N Volume 16.10 cm³ Curve radius (min) (convex) 50 mm Hose diameter (empf.) d 4 mm Size 50 Suction cup material Nitrile rubber NBR Material hardness [Shore A] 60 Shore A Weight 42.40 g Product family SAB Number of folds 1.50 |
| Weight | 0.0424 |
Please contact us to request a price quote for Schmalz - P/N: 10.01.06.01008 Type: SAB 50 NBR-60 M14x1.5-AG, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
