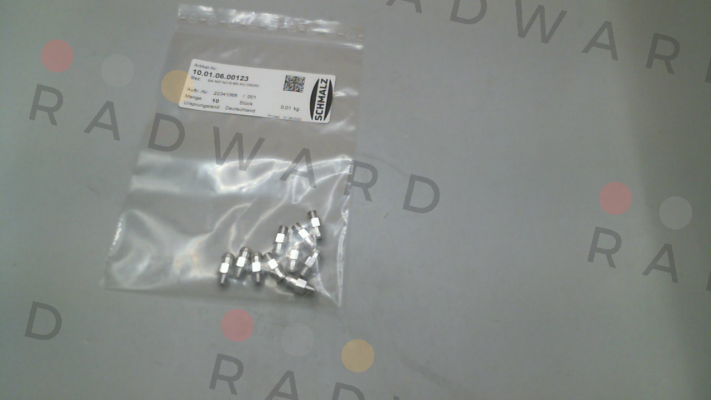

Schmalz - P/N: 10.01.06.00123 Type: SA-NIP N016 M5-AG DN250

Manufacturer Schmalz
Part Number P/N: 10.01.06.00123 Type: SA-NIP N016 M5-AG DN250
Inner Code 3377409

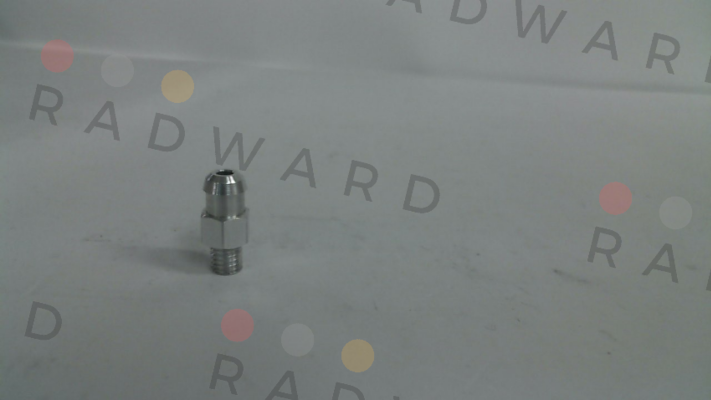

Description suction cup connection nipple
Custom Code 76161000
Technical specification nipples: N 016 thread G1: M5-AG total length: 16 mm Installation length: 5 mm Nominal width: 2.50 mm Material: aluminum
Weight 0.02

Please contact us to request a price quote for Schmalz - P/N: 10.01.06.00123 Type: SA-NIP N016 M5-AG DN250, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Schmalz-P/N: 10.01.06.00123 Type: SA-NIP N016 M5-AG DN250 price
