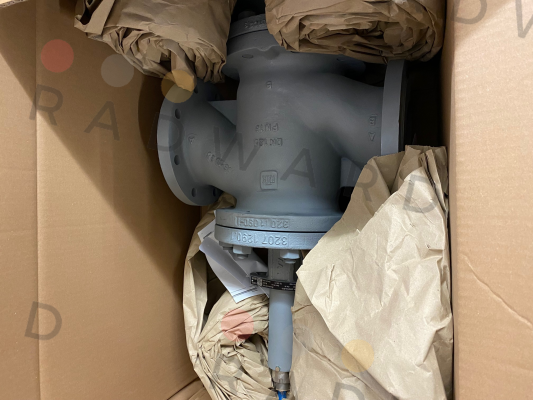

RTK Regeltechnik - MV 5324 Motor Control Valve
| Manufacturer | RTK Regeltechnik |
|---|---|
| Part Number | MV 5324 Motor Control Valve |
| Inner Code | 4821432 |
| Description | Motor Control Valve - MV 5324 Series |
| Technical specification | Replacement for W.Nr. 485089/01 Motor Control Valve - MV 5324 Series in three-way form for mixing Nominal size DN 125, nominal pressure PN 16 Body material spheroidal iron EN-GJS-400-18-LT flanges with sealing surface in accordance with DIN Spindle sealing: bellows with PTFE safety stuffing box Characteristic curve/flow: linear/- Mixing cone, metallic sealing Kvs value = 231 m³/h, stroke 35 mm Seat diameter 125 mm Surface treatment with zinc dust primer CE mark in accordance with the Pressure Equipment Directive (PED) max. allowable pressure according to DIN EN 1092 max. allowable temperature TS 350 °C - valve without actuator - |
Please contact us to request a price quote for RTK Regeltechnik - MV 5324 Motor Control Valve, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
