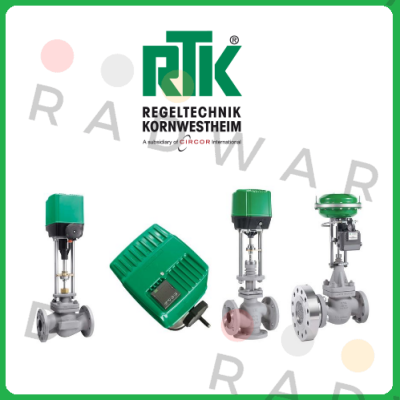

RTK Regeltechnik - MV 5324 DN100
| Manufacturer | RTK Regeltechnik |
|---|---|
| Part Number | MV 5324 DN100 |
| Inner Code | 4839271 |
| Description | motor control valve |
| Technical specification | in three-way form for mixing Nominal diameter DN 100, nominal pressure PN 16 Housing material ductile iron EN-GJS-400-18-LT Flanges with sealing surface in accordance with DIN Spindle sealing: Bellows with PTFE safety stuffing box Characteristic curve/flow: linear/- mixed cone, metallically sealing Kvs value = 148 m³/h, stroke 30 mm seat diameter 100 mm Surface treatment with zinc dust primer CE marking in accordance with Pressure Equipment Directive (PED) Maximum allowable pressure in accordance with DIN EN 1092 max. allowable temperature TS 350 °C Electric actuator - type ReAct 60E-045 Actuating force 6 kN, including manual adjustment AC motor 230 V, 50/60 Hz Operating speed 0.45 mm/s, stroke 30 mm Protection class IP 65 Additional equipment: - additional limit switches (2 pieces) - digital positioner, type rePos with display input signal: 4.. 20 mA Feedback signal: 4.. 20 mA Direction of action: at 0% input gate B closed Drive spindle extended at 0% input - Potentiometer 1000 ohms |
Please contact us to request a price quote for RTK Regeltechnik - MV 5324 DN100, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
