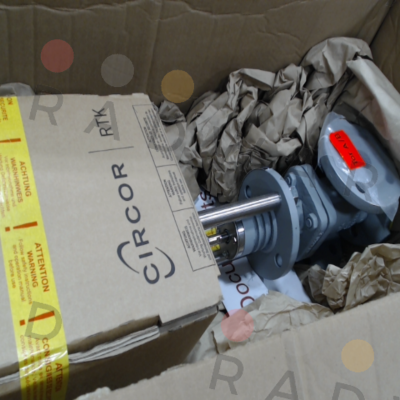

RTK Regeltechnik - MV 5274, DN 32
| Manufacturer | RTK Regeltechnik |
|---|---|
| Part Number | MV 5274, DN 32 |
| Inner Code | 4745012 |
| Description | modulating valves |
| Custom Code | 84818059 |
| Technical specification | Engine Control Valve - MV 5274 Series in three-way shape for mixing, with short B-flange Nominal diameter DN 32, nominal pressure PN 16 Housing material Ductile iron EN-GJS-400-18-LT flanges with sealing surface in accordance with DIN Spindle sealing: Bellows with PTFE safety stuffing box Characteristic/Anstrom.: linear/- mixing cone, metallic sealing Kvs value = 15 m³/h, stroke 15 mm seat diameter 32 mm Surface treatment with zinc dust primer CE mark in accordance with Pressure Equipment Directive (PED) max. allowable pressure in accordance with DIN EN 1092 max. allowable temperature TS 350 °C Electric actuator - type ReAct 30E-074 actuating force 3 kN, including manual adjustment AC motor 230 V, 50/60 Hz Adjustment speed 0.74 mm/s, stroke 15 mm Protection class IP 65 - additional limit switches (2 pieces) |
Please contact us to request a price quote for RTK Regeltechnik - MV 5274, DN 32, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
