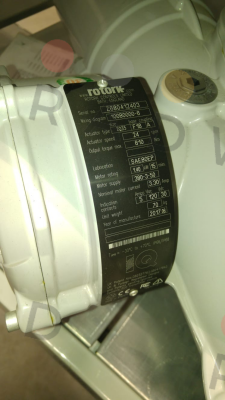

Rotork - Z680412403
| Manufacturer | Rotork |
|---|---|
| Part Number | Z680412403 |
| Inner Code | 3424324 |
| Description | spare actuator |
| Technical specification | IQ35 F16 A [IP68] 24RPM 380/3/50 Wiring diagram 100B0000 • ENCLOSURE: Watertight to IEC/BS EN 60529, IP66/IP68 - 20 metres/10 days. Terminal compartment sealed internally and externally ‘Double-Sealed’. • TEMPERATURE: -30° C to 70° C (-22° F to 158° F) subject to hazardous area certification where applicable (Watertight, FM, CSA EP) -20° C to 70° C (-4° F to 158° F) subject to hazardous area certification where applicable (ATEX, IECEx) • MOTOR: Three phase low inertia squirrel cage motor, class F insulation, incorporating thermostat protection. • SERVICE/DUTY RATING: Class A (On/Off), Class B (Inching), nominal 60 Starts at a rate not exceeding 600 starts per hour. 15 minutes rated based on a nominal torque of 33% of rated. • STARTER: Integral electrically and mechanically interlocked reversing contactors. • HAMMER BLOW: Drive incorporates lost motion ‘hammer-blow’, for releasing sticking valves. • SYNCROPHASE: Auto Phase rotation correction and lost phase protection on three phase supplies. • LOCAL CONTROLS: Black, Open/Close selector and Red, padlockable Local/Stop/Remote selector (stop remains available for site operational protection). • LOCAL INDICATION: Integral illuminated, digital valve position indicator showing 0.1% increments in position with closed and open limit symbols, torque, alarms and other status data. 3 LED's; red-open, yellow-intermediate, green-closed (can reverse), blinker and alarms configurable. • BATTERY SUPPORT - POWER OFF CONDITIONS: The battery is not required for position sensing it does however support the LCD display, operation of indication relays, commissioning and data logging functions in the absence of mains power. • POSITION SENSOR: Absolute encoder with 8000 turn, 0.1% resolution with built in redundancy, provides continuous high resolution position measurement which is fully maintained during manual operation and without a power supply or battery support. • ORIENTATION: Actuator can be mounted in any orientation, control cover including local controls and indication can be rotated in 90° increments to suit. • MANUAL OVERRIDE: Padlockable clutch lever, Handwheel clockwise to close, automatically disengages when motor starts and non-rotating during electric operation. • LUBRICATION: Gearcase oil filled for life – SAE80EP gear oil. • TORQUE SWITCHES: Adjustable electronic torque switches 40% to 100% of rated with start of travel bypass option. • COMMISSIONING: Travel limit setting, configuration of relays, alarms and other actuator settings carried out non-intrusively via an Infra-red/Bluetooth Setting Tool (one supplied with every order). Settings can be password protected. • DATA LOGGING/ASSET MANAGEMENT: Date/time stamped logging and display of operational events and trends, motor starts and valve torque profiles. Valve/actuator/gearbox data can be stored and service alarms configured. Data can also be downloaded via IrDA or Bluetooth to the supplied setting tool for upload to a PC and analysis using free InSight2 software. • CABLE ENTRIES: 3x M25 + 1x M40 (alternatively 3x 1” + 1x 1.5” NPT or 3x PG16 + 1x PG29). Cable glands not included in our scope of supply. • TERMINALS: M5 power and M4 control terminals, screws and washers supplied. Designed for ring tag crimped field wiring conductors up to 16.0mm² for power and 4.0mm² for controls. • PAINT FINISH: Polyester powder coating applied by electrostatic means to 100 micron nominal thickness. Colours: Handwheel/Hand Auto Lever/Base – Black. Housings/Covers - Grey (00-A-05) WIRING DIAGRAM Wiring diagram 100B0000 is described in IQ/IQT Control and Monitoring publication (PUB002-041) and includes: • CONTROL SUPPLY: 20 – 60VDC/40 – 120VAC or actuator derived 24VDC • CONTROL INPUTS: 6 inputs for open, close, stop/maintain, ESD and interlock signals • INDICATION CONTACTS: 4 volt-free (SPST) latching contacts (S1-S4), rated at 120VAC/30VDC, 5mA to 5A, each configurable NO or NC to signal one of the following; open/closed or intermediate positions, moving (continuous or pulsing), Handwheel operation, local selected, remote selected, open/close interlock active, ESD active, motor tripped on torque in mid travel/going • ENCLOSURE: Watertight to IEC/BS EN 60529, IP66/IP68 - 20 metres/10 days. Terminal compartment sealed internally and externally ‘Double-Sealed’. • TEMPERATURE: -30° C to 70° C (-22° F to 158° F) subject to hazardous area certification where applicable (Watertight, FM, CSA EP) -20° C to 70° C (-4° F to 158° F) subject to hazardous area certification where applicable (ATEX, IECEx) • MOTOR: Three phase low inertia squirrel cage motor, class F insulation, incorporating thermostat protection. • SERVICE/DUTY RATING: Class A (On/Off), Class B (Inching), nominal 60 Starts at a rate not exceeding 600 starts per hour. 15 minutes rated based on a nominal torque of 33% of rated. • STARTER: Integral electrically and mechanically interlocked reversing contactors. • HAMMER BLOW: Drive incorporates lost motion ‘hammer-blow’, for releasing sticking valves. • SYNCROPHASE: Auto Phase rotation correction and lost phase protection on three phase supplies. • LOCAL CONTROLS: Black, Open/Close selector and Red, padlockable Local/Stop/Remote selector (stop remains available for site operational protection). • LOCAL INDICATION: Integral illuminated, digital valve position indicator showing 0.1% increments in position with closed and open limit symbols, torque, alarms and other status data. 3 LED's; red-open, yellow-intermediate, green-closed (can reverse), blinker and alarms configurable. • BATTERY SUPPORT - POWER OFF CONDITIONS: The battery is not required for position sensing it does however support the LCD display, operation of indication relays, commissioning and data logging functions in the absence of mains power. • POSITION SENSOR: Absolute encoder with 8000 turn, 0.1% resolution with built in redundancy, provides continuous high resolution position measurement which is fully maintained during manual operation and without a power supply or battery support. • ORIENTATION: Actuator can be mounted in any orientation, control cover including local controls and indication can be rotated in 90° increments to suit. • MANUAL OVERRIDE: Padlockable clutch lever, Handwheel clockwise to close, automatically disengages when motor starts and non-rotating during electric operation. • LUBRICATION: Gearcase oil filled for life – SAE80EP gear oil. • TORQUE SWITCHES: Adjustable electronic torque switches 40% to 100% of rated with start of travel bypass option. • COMMISSIONING: Travel limit setting, configuration of relays, alarms and other actuator settings carried out non-intrusively via an Infra-red/Bluetooth Setting Tool (one supplied with every order). Settings can be password protected. • DATA LOGGING/ASSET MANAGEMENT: Date/time stamped logging and display of operational events and trends, motor starts and valve torque profiles. Valve/actuator/gearbox data can be stored and service alarms configured. Data can also be downloaded via IrDA or Bluetooth to the supplied setting tool for upload to a PC and analysis using free InSight2 software. • CABLE ENTRIES: 3x M25 + 1x M40 (alternatively 3x 1” + 1x 1.5” NPT or 3x PG16 + 1x PG29). Cable glands not included in our scope of supply. • TERMINALS: M5 power and M4 control terminals, screws and washers supplied. Designed for ring tag crimped field wiring conductors up to 16.0mm² for power and 4.0mm² for controls. • PAINT FINISH: Polyester powder coating applied by electrostatic means to 100 micron nominal thickness. Colours: Handwheel/Hand Auto Lever/Base – Black. Housings/Covers - Grey (00-A-05) WIRING DIAGRAM Wiring diagram 100B0000 is described in IQ/IQT Control and Monitoring publication (PUB002-041) and includes: • CONTROL SUPPLY: 20 – 60VDC/40 – 120VAC or actuator derived 24VDC • CONTROL INPUTS: 6 inputs for open, close, stop/maintain, ESD and interlock signals • INDICATION CONTACTS: 4 volt-free (SPST) latching contacts (S1-S4), rated at 120VAC/30VDC, 5mA to 5A, each configurable NO or NC to signal one of the following; open/closed or intermediate positions, moving (continuous or pulsing), Handwheel operation, local selected, remote selected, open/close interlock active, ESD active, motor tripped on torque in mid travel/going open/going closed, valve jammed, loss of power/phase or control supply, battery low, internal failure detected, thermostat tripped, programmable service alarms. • MONITOR AND AVAILABILITY RELAY: Independent relay with volt-free changeover contact, rated at 120VAC/30VDC, 5mA to 5A. De-energises in case of; loss of power/phase or control supply, local control or local stop selected (can be excluded), motor thermostat tripped or detected internal failure |
| Weight | 75 |
Please contact us to request a price quote for Rotork - Z680412403, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
