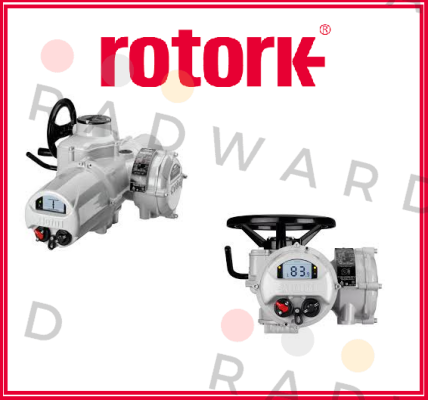

Rotork - IQ10 F10 B4 [II2GD EX DB IIB T4] 400/3/50 96RPM + IW3/F10/48:1
| Manufacturer | Rotork |
|---|---|
| Part Number | IQ10 F10 B4 [II2GD EX DB IIB T4] 400/3/50 96RPM + IW3/F10/48:1 |
| Inner Code | 5049163 |
| Description | Actuator |
| Technical specification | Wiring diagram: 100B0000 Paint System PX - ISO12944 C5-M/C5-I (High) Stainless Steel Nameplate • Three Phase low inertia squirrel cage motor including class F insulation & thermostat. • Integral electrically and mechanically interlocked reversing contactors, suitable for up to 60 starts/hour at a rate not exceeding 600 starts/hour. (Class A & B) • Drive incorporating lost motion ‘hammer-blow’, for releasing sticking valves. • Integral illuminated user interface showing valve position in 0.1% increments with open and closed valve limit symbols, torque warnings, status information and datalogger information • Three local indication LED’s; red-open, yellow-intermediate, green-closed (can be reversed), • Red Local/Stop/Remote control selector (Padlockable) & Black Open/Close Selector • Padlockable clutched manual override lever • Handwheel (Clockwise to Close as standard), Non-Rotating during electrical operation • Non-intrusive set-up & commissioning using the local selectors (disabled by default), the Rotork mobile phone app (available on Google or Apple app stores) or Rotork's Bluetooth Setting Tool Pro (one supplied per order). • Adjustable torque switches settable between 40% & 100% of rated torque. • Datalogger capturing operational and environmental information, such as torque profiles and Vibration logs • Asset Management Log and Configurable service alarms • Double sealed terminal enclosure with four threaded cable entries (1x M40, 3x M25 as standard). • Powder coated to 100 microns (nominal DFT). Body - BS4800 00-A-05 (Light Grey – Gloss), Handwheel and Manual Override Lever - RAL9005 (black - satin). IW QUARTER-TURN WORM GEARBOX • GEARING: Totally enclosed gearing. • BEARINGS: High efficiency, angular contact bearings supporting worm shaft. • LUBRICATION: Grease filled for life and fully sealed. • MECHANICAL TRAVEL STOPS: Stop bolt adjustment allows +/-5% variation of travel at each end position. • DRIVE SLEEVE: Removable steel output drive sleeve, facilitating machining to match valve shaft (except size 12 and larger). • PAINT FINISH: Two coat Epoxy and Polyurethane paint system, 125 micron minimum thickness, top coat colour 00-A-05 (silver grey). • TEMPERATURE: -40 to 120 ºC (-40 to 250 ºF) COUPLING - ACTUATOR & GEARBOX COMBINATION Removable steel Form B drive bushes are supplied blank for final machining by others. All internal bearings and output drive bearings are lubricated for life, sealed and maintenance free. Maximum stem acceptance is listed in the IW gearbox brochure: PUB028-079. Please note this is a NON THRUST gearbox and must NOT be used for direct mounted rising stem valves or any other thrust producing application. If you require a thrust taking gearbox, please contact the undersigned so that we can revise our quotation accordingly. ENCLOSURE - ATEX - IQ/IQT Actuator enclosure certified under ATEX Potentially Explosive Atmospheres directive 2014/34/EU. Actuator marking will include the CE mark and Ex symbol with ratings for Gas and Dust ignition protection plus ingress protection for Dust and Water as follows: II2GD c Ex d IIB T4 Gb Ex tb IIIC T120°C Db In addition to this the actuator is double sealed and rated to IP66/68 (7m / 72 hours) under IEC 60529 & BS EN 60529. PAINT SYSTEM PX Tested in accordance with ISO 20340 & ISO 12944-2 this system utilises two pack epoxy and polyurethane paints applied by spray onto shot blasted substrates to offer a high level of corrosion protection with a high durability in a C5-M or C5-I environment. DFT 320-640 microns. Colour BS4800 00-A-05 Light Grey - Gloss. Alternative colour options available WIRING DIAGRAM Wiring diagram 100B0000 is described in IQ/IQT Control and Monitoring publication (PUB002-041) and includes: • CONTROL SUPPLY: 20 – 60VDC/40 – 120VAC or actuator derived 24VDC • CONTROL INPUTS: 6 inputs for open, close, stop/maintain, ESD and interlock signals • INDICATION CONTACTS: 4 volt-free (SPST) latching contacts (S1-S4), rated at 120VAC/30VDC, 5mA to 5A, each configurable NO or NC to signal one of the following; open/closed or intermediate positions, moving (continuous or pulsing), Handwheel operation, local selected, remote selected, open/close interlock active, ESD active, motor tripped on torque in mid travel/going open/going closed, valve jammed, loss of power/phase or control supply, battery low, internal failure detected, thermostat tripped, programmable service alarms. • MONITOR AND AVAILABILITY RELAY: Independent relay with volt-free changeover contact, rated at 120VAC/30VDC, 5mA to 5A. De-energises in case of; loss of power/phase or control supply, local control or local stop selected (can be excluded), motor thermostat tripped or detected internal failure POWER SUPPLY – 400/3/50 The actuators offered are suitable for operation on a nominal supply of 400/3/50 Tolerances: Voltage: +/- 10%, Frequency: +/- 5% Tolerances apply to rated torque performance only, duty cycle and speed are not guaranteed. SAFETY FACTORS Please note unless stated in your enquiry, we have not added any additional safety while sizing. We assume this is included in your torque or thrust figures provided. Please let us know if this is incorrect, stating your required safety, so we can revise our quotation accordingly. PERFORMANCE DETAILS IQ10 @ 96RPM + IW3 48:1 = 510Nm IQ actuators can achieve between 1.5 and 2 times the rated torque figure under stall conditions. The IQ/IQT range of actuators are torque/thrust adjustable between 40% and 100% of the rated torque/thrust figure |
Please contact us to request a price quote for Rotork - IQ10 F10 B4 [II2GD EX DB IIB T4] 400/3/50 96RPM + IW3/F10/48:1, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
