ProMinent - PHEX 112-SE

Manufacturer ProMinent
Part Number PHEX 112-SE
Inner Code 4192048
Description pH electrode
Custom Code 90278020

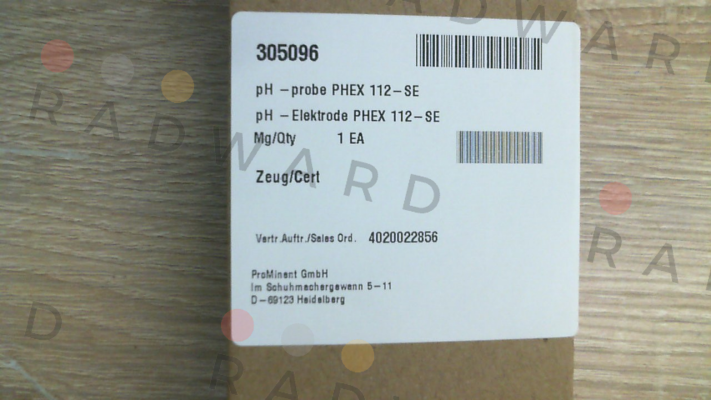

Technical specification 305096 pH electrode PHEX 112-SE pH sensor for use in aqueous polluted media that contain a high solids content. Applications include wastewater, process water, process chemistry, emulsions, suspensions and protein-containing media. pH range: 1-12 Temperature: 0... 100°C max. pressure: 16.0 bar @25°C, 6.0 bar @ 100°C Conductivity: min 500 μS/cm screw thread: PG 13.5 Electrical connection: SN6 (S8) Sensor shaft diameter: 12 mm Installation length: 120 mm Diaphragm: ring gap without diaphragm Electrolyte: potassium chloride-containing polymer

Please contact us to request a price quote for ProMinent - PHEX 112-SE, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

ProMinent-PHEX 112-SE price
