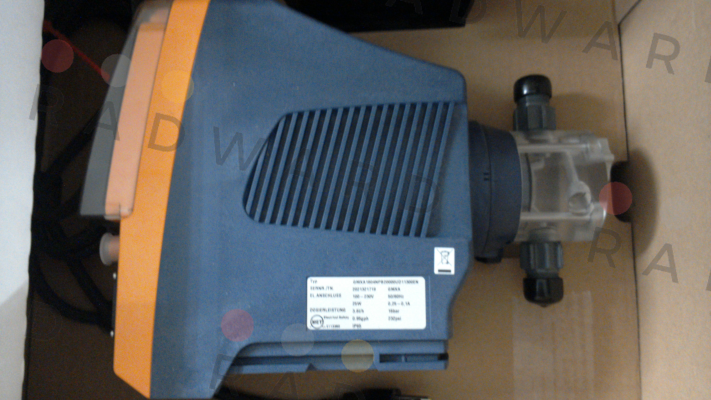

ProMinent - GMXA1604NPB20000UD11300EN / GMXA (GAMMA-X)
| Manufacturer | ProMinent |
|---|---|
| Part Number | GMXA1604NPB20000UD11300EN / GMXA (GAMMA-X) |
| Inner Code | 4387546 |
| Description | Magnetic dosing pump |
| Custom Code | 84135040 |
| Technical specification | Total series output range: 2.3 l/h — 45 l/h, 25 — 2 bar - Easy adjustment of dosing rate directly in l/h or gph - trouble-free process flow by detecting hydraulic malfunctioning conditions such as gas in the dosing head, “overpressure” and “no pressure” (no or too high back pressure) - The controlled magnetic drive makes it suitable for continuous small quantity dosing from approx. 1 ml/h — this also prevents vibration damage due to low-pulsation dosing characteristics • thus saving pulsation dampers or mixers (in the lower or middle pump output range). - highest dosing accuracy through compensation for pressure fluctuations - Built-in 1-week/1-month timer - Direct input of the desired final concentration in concentration mode for quantity-proportional dosing tasks - Can be used for almost all liquid chemicals due to available material variants PVDF, acrylic glass, PP, PTFE and stainless steel Pump type: 1604 - 16bar; 04l/h connection 6x4/SS6x5 Dosing head material: NP - plexiglass/PVC Sealing material: B - standard membr. /Viton-B tight. Dosing head type: 2 - with vent; o.valve spring Hydraulic connection: 0 - standard connection Membrane break detector: 0 - without Version: 0 - housing RAL5003/hood RAL2003 Logo: 0 - with PM logo Power part version: U - universal 100-240V Cable and plug: D - 2m USA 115V Relay function: 1 relay 3-pin 230V, 8A Accessories: 1 - dos.v.+fuss.v.2mschl.5mpe-schl. Control variant: 3 - manual+cont.m.pulsecond. +anal. Dosing monitoring: 0 - dosing monitoring dynamic Remote stop (pause): 0 - without Bluetooth Language: EN - English Approval: 07 - MET (USA) Documentation language: EN - English Frequency (Hz): 50/60Hz Voltage (V) :100-230V Power (W) :25W Protection class: IP65 flow rate (l/h): 3.6 l/h back pressure (bar): 16bar |
Please contact us to request a price quote for ProMinent - GMXA1604NPB20000UD11300EN / GMXA (GAMMA-X), or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
