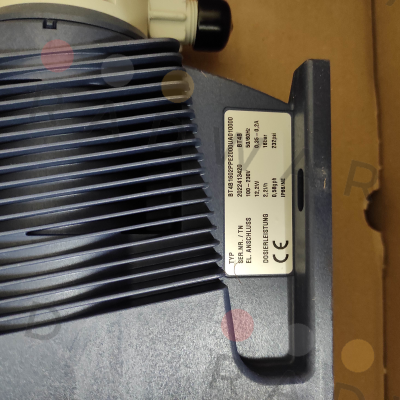

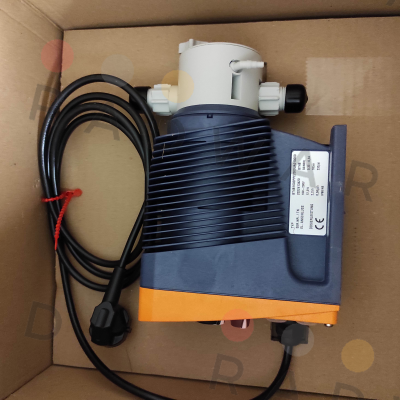

ProMinent - BT4B1602PPE2000UA010000 / BT4B
| Manufacturer | ProMinent |
|---|---|
| Part Number | BT4B1602PPE2000UA010000 / BT4B |
| Inner Code | 4674418 |
| Description | Beta 4b magnetic dosing pump |
| Custom Code | 84135040 |
| Technical specification | Universally applicable microprocessor-controlled magnetic dosing pump for dosing liquid media with infinitely variable stroke length adjustment Version with multifunction button for 10% speed adjustment steps, as well as adjustment options for external, stop and test function. The Beta series has an almost wear-free magnetic drive and achieves reproducibility of dosing accuracy of +/- 2% (with 30 to 100% stroke length) Control via potential-free contacts with pulse-over and Reduction is possible in the range of 64:1 to 1:64 with connection for 2-stage level switch and an optional Relay module, which is also safely and easily retrofitted Can become Can be used for almost all liquid chemicals thanks to the available material combinations PP, PVDF, acrylic glass, PTFE and inox Identification code: BT4B1602PPE2000UA010000 Series: BT4B - BETA 4 - pump version B Pump type: 1602 - 16 bar, 2.2 l/h ANS.6x4/SS6x5 Dosing head material: PP - polypropylene Sealing material: E - standard membrane with EPDM sealing. Dosing head type: 2 - m vent, without valve spring Hydraulic connection: 0 - standard connection Version: 0 - GEH.RAL5003/cover RAL2003 Logo: 0 - with PM logo Voltage version: U - Universal 100-240 V Cable and plug: A - 2m Europe Relay function: 0 - without relay Accessories: 1 - dos.v.u.fussv.,2mschl.5mpe key Control type: 0 - without lock Control variant: 0 - pulse control Remote stop: 0 - pause opener, niv. openers Auxiliary frequency: 0 - external frequency = 180max Approval: 01 - CE Frequency (Hz): 50/60Hz Voltage (V): 100-230V Power (W): 12.2W Protection class: IP66/NEMA4X Delivery rate (l/h): 2.2 l/h Back pressure (bar): 16 bar |
Please contact us to request a price quote for ProMinent - BT4B1602PPE2000UA010000 / BT4B, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
