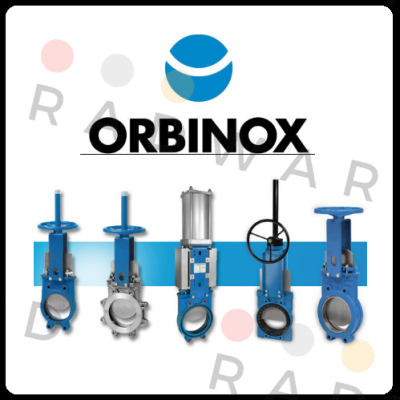

Orbinox - Type EXV
| Manufacturer | Orbinox |
|---|---|
| Part Number | Type EXV |
| Inner Code | 3507826 |
| Description | Knifegatevalve |
| Custom Code | 84818061 |
| Technical specification | uni-directional wafertype knife gate valve, Flanges acc. to EN 1092-2 PN 10 Diameter : DN 150 Body : GG 25, Epoxycoated RAL 5015 Slide : Stainless steel AISI 304 (1.4301) Stem : Stainless Steel AISI 430 (1.4016) , rising Yoke : Steel, Epoxycoated Gland follower : up to DN 300 Aluminium, from DN 350 cast iron Packing : PTFE-impregn. synth. fibre (Type ST) Seat : EPDM Seat retainer ring : Type A (standard), AISI 304 Actuator : Handwheel Max. pressure in flowdirection : DN 50 to 250 = 10 bar, DN 300 to DN 400 = 6 bar DN 450 = 5 bar, DN 500 to DN 600 = 4 bar without Flangesealing- und Fixingmaterial Design acc to ref. O.S. 239233-003 |
| Weight | 18 |
Please contact us to request a price quote for Orbinox - Type EXV, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
