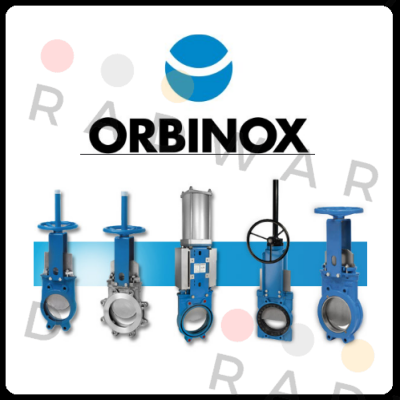

Orbinox - EXP
| Manufacturer | Orbinox |
|---|---|
| Part Number | EXP |
| Inner Code | 4805435 |
| Description | knife pusher |
| Technical specification | short-length intermediate flange valve, sealing on one side, for installation between flanges in accordance with EN 1092-2 PN 10 Nominal size: DN 200 Housing: GJL 250/GG 25, epoxy coated RAL 5015 Blade: stainless steel AISI 304 (1.4301) Pull rod: stainless steel AISI 430 (1.4016) Construction bracket: steel, epoxy coated Stuffing box glasses: aluminum Stuffing box packing: PTFE-soaked synthetic fiber (ST type) Sealing ring: Viton Sealing ring: Type A (standard), stainless steel AISI 304 (1.4301) Operation: quick release lever allowable differential pressure in flow direction: DN 50 to 250 = 10 bar, DN 300 = 6 bar Accessories: - - - Without flange gasket and mounting material |
Please contact us to request a price quote for Orbinox - EXP, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
